Federal Motorsports

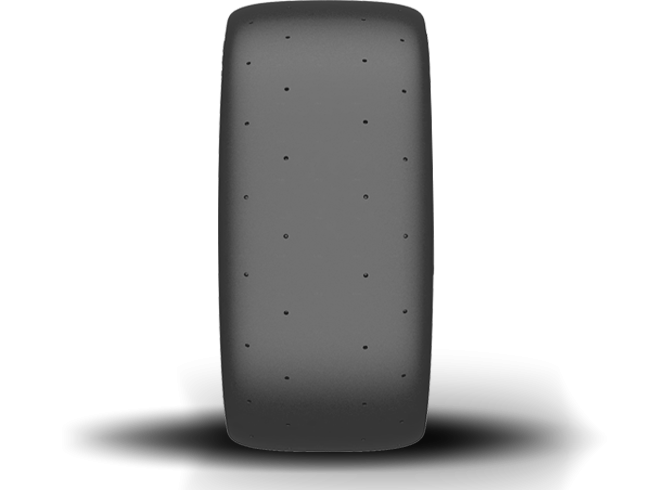

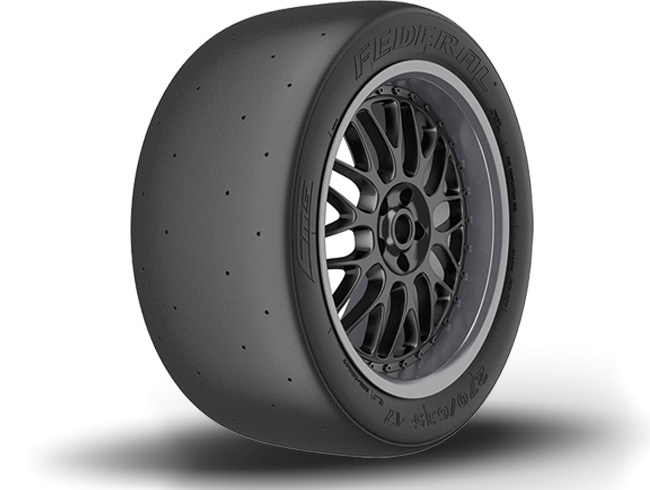

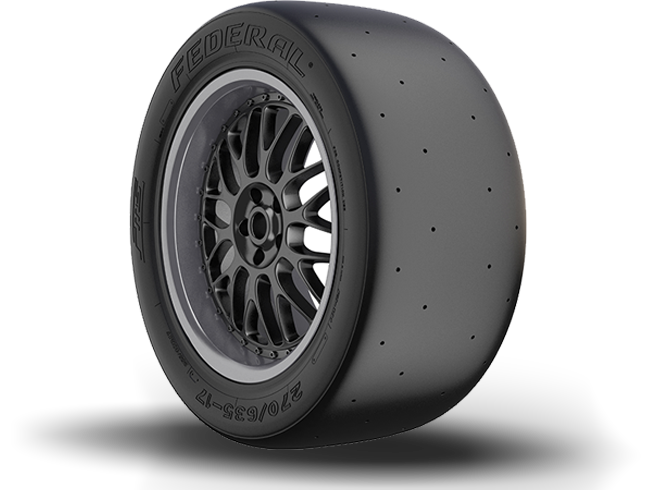

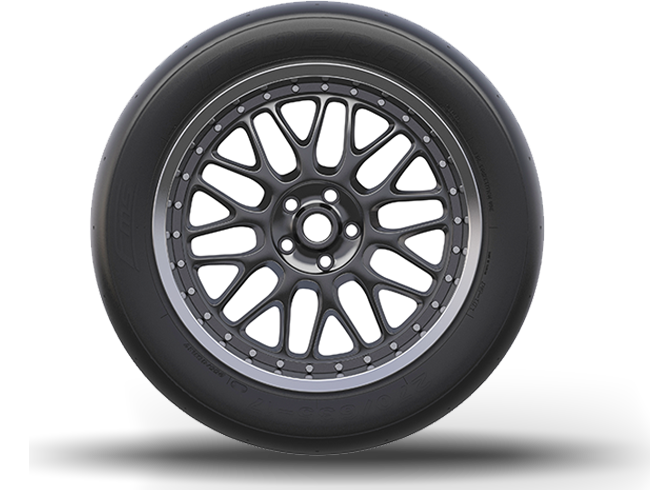

FZ-101
The FZ-101 is a full-slick competition tire that provides fast lap times and maximum dry grips with superior cornering force.
FEATURES
"Competition Only"
- Advance compounds grant outstanding dry grips.
- Kevlar reinforced sidewalls ensure optimal roughness and contact patch, plus durability and stability at high speed.
- Large contact patch areas maximize steering and cornering accuracy.
Warning
Federal Corporation makes no expressed or implied warranty as to the fitness or merchantability of Federal competition tyres due to the varied and severe conditions under which they operate and shall not be liable for any direct, indirect, consequential or special damages arising out of their use.
Even if DOT approved or E-Mark approved Federal competition tyres are designed and compounded for competition use only and are not intended for highway or road use.
Dimension Data
Horizontal Scrolling
| SER | Size | Compounds | LI/SS | Overall Diameter |
Section Width |
Standard Rim in |
Tread Width |
Tread Depth |
UTQG | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | ||||||
| 540 | 200/540-13 | S | 544 | 21.4 | 239 | 9.4 | 9.0 | 203 | 8.0 | ||||
| 575 | 210/575-15 | M | 573 | 22.6 | 200 | 7.9 | 7.0 | 280 | 8.2 | ||||
| 210/575-15 | S.2 | 573 | 22.6 | 200 | 7.9 | 7.0 | 208 | 8.2 | |||||
| 210/575-15 | S | 573 | 22.6 | 200 | 7.9 | 7.0 | 208 | 8.2 | |||||
| 250/575-13 | S | 575 | 22.6 | 287 | 11.3 | 10.0 | 246 | 9.7 | |||||
| 610 | 240/610-17 | S.2 | 605 | 23.8 | 240 | 9.4 | 9.0 | 234 | 9.2 | ||||
| 240/610-17 | S | 605 | 23.8 | 240 | 9.4 | 9.0 | 234 | 9.2 | |||||
| 640 | 245/640-17 | M | 640 | 25.2 | 239 | 9.4 | 9.0 | 237 | 9.3 | ||||
| 650 | 270/650-18 | S | 654 | 25.7 | 277 | 10.9 | 10.0 | 249 | 9.8 | ||||
