Federal Motorsports
FZ-101W

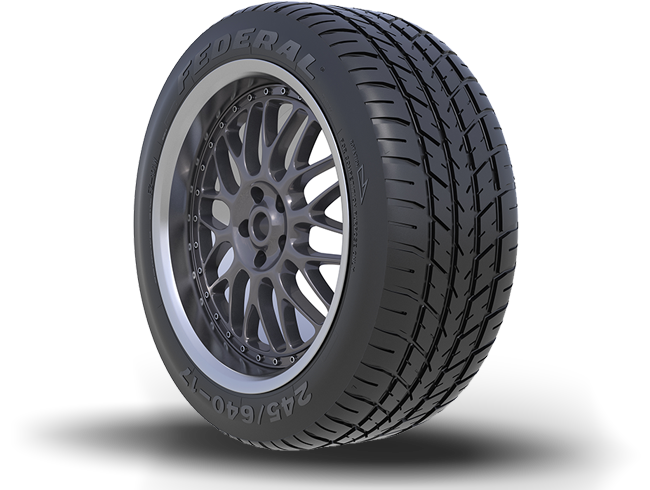

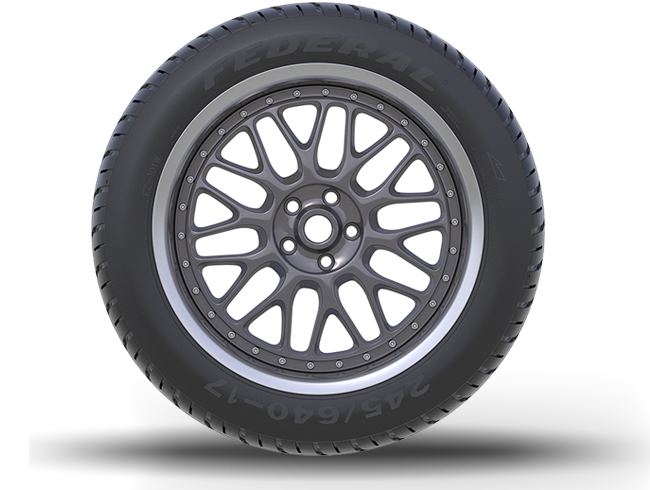

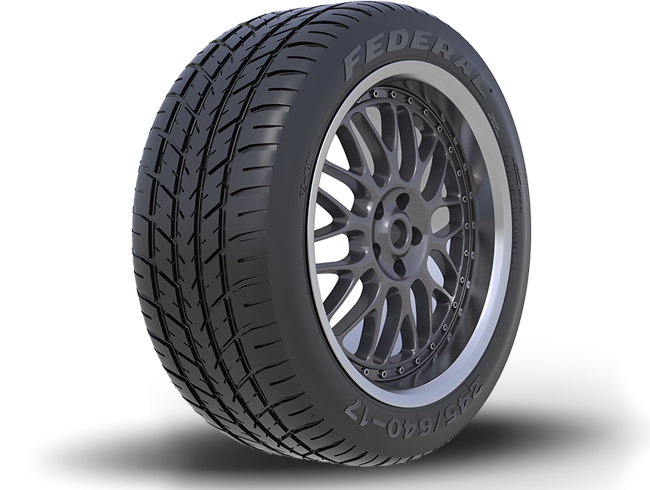

The FZ-101W rain tire is designed for maximum water dispersion with superb traction in moist, wet and slippery conditions.
FEATURES
"Competition Only"
- Advance compounds deliver high traction on wet surfaces.
- Uni-directional grooves enhance high-speed stability and traction.

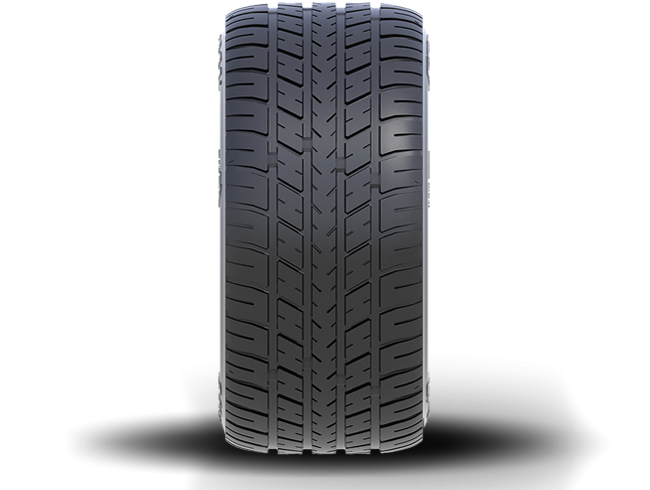

- Unique V-shaped grooves provide excellent balance between traction and drainage.
Warning
Federal Corporation makes no expressed or implied warranty as to the fitness or merchantability of Federal competition tyres due to the varied and severe conditions under which they operate and shall not be liable for any direct, indirect, consequential or special damages arising out of their use.
Even if DOT approved or E-Mark approved Federal competition tyres are designed and compounded for competition use only and are not intended for highway or road use.
Dimension Data
Horizontal Scrolling
| SER | Size | Compounds | LI/SS | Overall Diameter |
Section Width |
Standard Rim in |
Tread Width |
Tread Depth |
UTQG | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | ||||||
| 540 | 200/540-13 | 542 | 21.4 | 238 | 9.4 | 9.0 | 202 | 8.0 | 6.0 | 8 | |||
| 575 | 210/575-15 | 572 | 22.5 | 211 | 8.3 | 7.0 | 189 | 7.4 | 6.5 | 8 | |||
| 250/575-13 | 574 | 22.6 | 287 | 11.3 | 10.0 | 246 | 9.7 | 6.0 | 8 | ||||
| 610 | 240/610-17 | 608 | 23.9 | 241 | 9.5 | 9.0 | 230 | 9.1 | 6.5 | 8 | |||
| 640 | 245/640-17 | 636 | 25.0 | 245 | 9.6 | 9.0 | 234 | 9.2 | 6.5 | 8 | |||
| 650 | 270/650-18 | 654 | 25.7 | 276 | 10.9 | 10.0 | 261 | 10.3 | 6.0 | 8 | |||
