Federal Motorsports

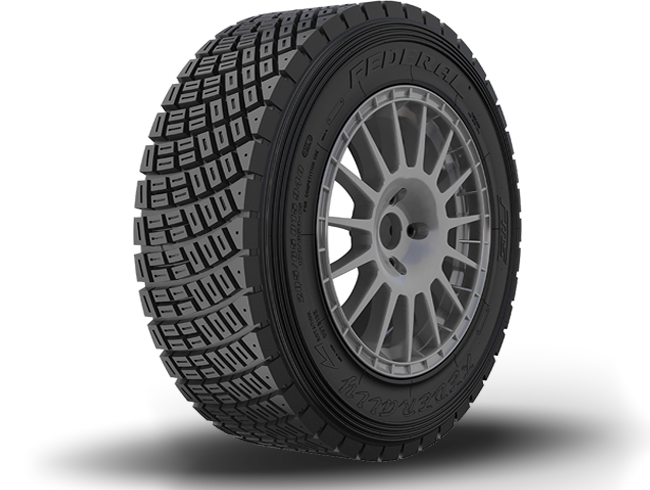

FEDERALLY G-10
Approved by MSA (Motor Sports Association) UK, the G-10 is a multi-purpose rally tire suitable for a wide range of conditions including dry or wet, broken tarmac or hard, abrasive and compacted gravel rally stages.
FEATURES
"Competition Only"

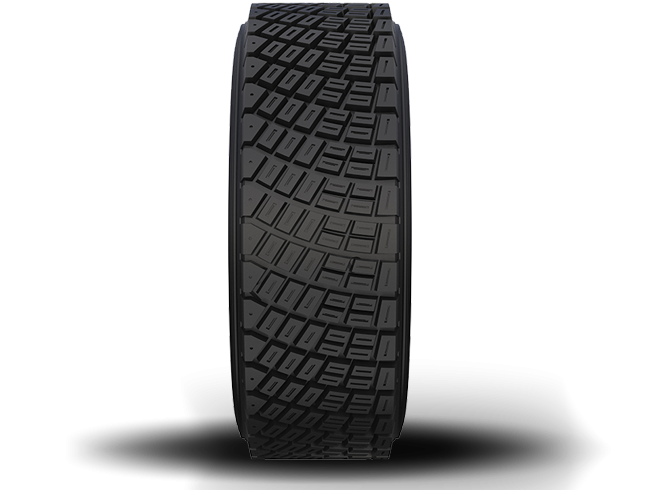

- Asymmetric tread patterns ensure maximum performance in traction and braking.
- Rigid structure and dense tread pattern ensure superb stability and lateral grips in fast cornering.
- Reinforced structure both in the tread areas and sidewalls deliver comprehensive resistance against cuts and chips.
Warning
Federal Corporation makes no expressed or implied warranty as to the fitness or merchantability of Federal competition tyres due to the varied and severe conditions under which they operate and shall not be liable for any direct, indirect, consequential or special damages arising out of their use.
Even if DOT approved or E-Mark approved Federal competition tyres are designed and compounded for competition use only and are not intended for highway or road use.
Dimension Data
Horizontal Scrolling
| SER | Size | Compounds | LI/SS | Overall Diameter |
Section Width |
Standard Rim in |
Tread Width |
Tread Depth |
UTQG | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | ||||||
| 15 | 185/65R15 | S/L | 88Q | 624 | 24.6 | 194 | 7.6 | 5.5 | 166 | 6.5 | 10.4 | 13 | |
| 185/65R15 | S/R | 88Q | 624 | 24.6 | 194 | 7.6 | 5.5 | 166 | 6.5 | 10.8 | 14 | ||
| 195/65R15 | S/L | 91Q | 638 | 25.1 | 204 | 8.0 | 6.0 | 170 | 6.7 | 10.6 | 13 | ||
| 195/65R15 | S/R | 91Q | 638 | 25.1 | 204 | 8.0 | 6.0 | 170 | 6.7 | 10.6 | 13 | ||
| 205/65R15 | M/L | 94Q | 650 | 25.6 | 207 | 8.1 | 6.0 | 180 | 7.1 | 11.0 | 14 | ||
| 205/65R15 | M/R | 94Q | 650 | 25.6 | 207 | 8.1 | 6.0 | 180 | 7.1 | 11.0 | 14 | ||
| 205/65R15 | S/L | 94Q | 650 | 25.6 | 207 | 8.1 | 6.0 | 180 | 7.1 | 11.0 | 14 | ||
| 205/65R15 | S/R | 94Q | 650 | 25.6 | 207 | 8.1 | 6.0 | 180 | 7.1 | 11.0 | 14 | ||
