Federal Motorsports

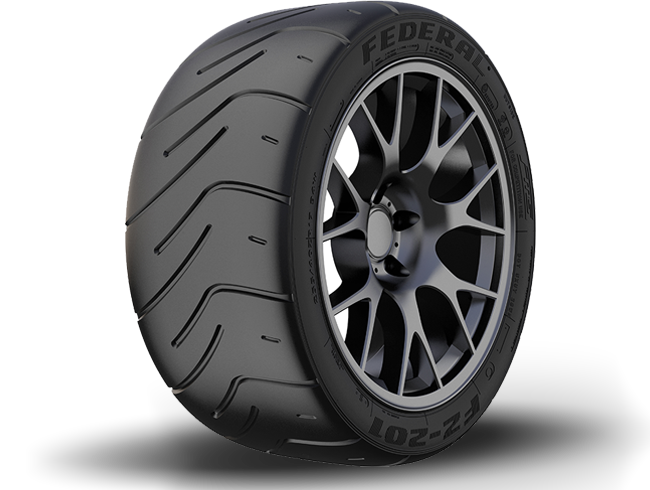

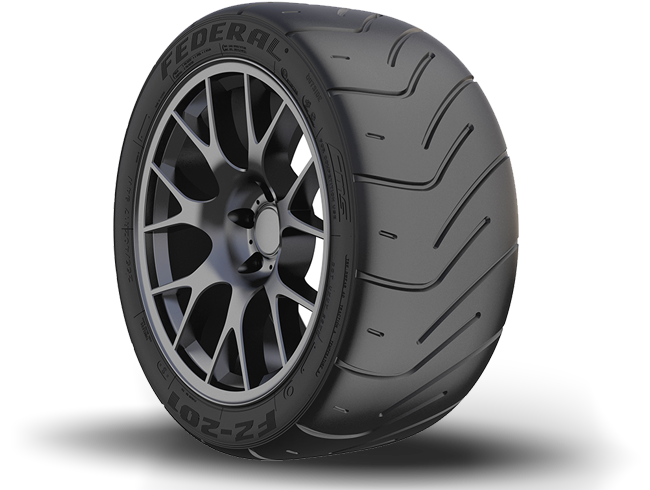

FZ-201
The semi-slick FZ-201 delivers the optimal balance of dry/wet traction, consistency, and longevity, making it ideal for time attack, track days, and high performance driving schools.
FEATURES
"Competition Only"
- Advance compounds provide consistent performance throughout the life of the tire.
- Larger shoulder blocks provide continuous contact with the road while maneuvering.

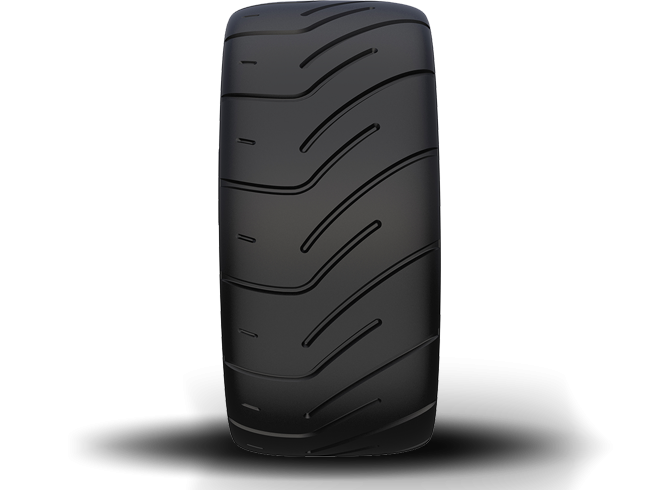

- Unique L-shaped grooves assist with wet traction.
- UTQG 40AA
Warning
Federal Corporation makes no expressed or implied warranty as to the fitness or merchantability of Federal competition tyres due to the varied and severe conditions under which they operate and shall not be liable for any direct, indirect, consequential or special damages arising out of their use.
Even if DOT approved or E-Mark approved Federal competition tyres are designed and compounded for competition use only and are not intended for highway or road use.
Dimension Data
Horizontal Scrolling
| SER | Size | Compounds | LI/SS | Overall Diameter |
Section Width |
Standard Rim in |
Tread Width |
Tread Depth |
UTQG | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | ||||||
| 13 | 185/60R13 | M | 80V | 548 | 21.6 | 188 | 7.4 | 5.5 | 176 | 6.9 | 4.8 | 6 | |
| 15 | 195/50ZR15 | M | 82W | 577 | 22.7 | 200 | 7.9 | 6.0 | 187 | 7.4 | 4.8 | 6 | |
| 195/50ZR15 | S | 82W | 577 | 22.7 | 200 | 7.9 | 6.0 | 187 | 7.4 | 4.8 | 6 | ||
| 205/50R15 | S | 86V | 583 | 22.9 | 218 | 8.6 | 6.5 | 208 | 8.2 | 4.8 | 6 | ||
| 205/50ZR15 | M | 86W | 583 | 22.9 | 218 | 8.6 | 6.5 | 208 | 8.2 | 4.8 | 6 | ||
| 17 | 215/45ZR17 | M | 87W | 623 | 24.5 | 211 | 8.3 | 7.0 | 201 | 7.9 | 4.8 | 6 | |
| 215/45ZR17 | S | 87W | 623 | 24.5 | 211 | 8.3 | 7.0 | 201 | 7.9 | 4.8 | 6 | ||
| 225/45ZR17 | M | 91W | 637 | 25.1 | 226 | 8.9 | 7.5 | 232 | 9.1 | 4.8 | 6 | ||
| 225/45ZR17 | S | 91W | 637 | 25.1 | 226 | 8.9 | 7.5 | 232 | 9.1 | 4.8 | 6 | ||
| 235/40ZR17 | M | 90W | 616 | 24.2 | 241 | 9.5 | 8.5 | 224 | 8.8 | 4.8 | 6 | ||
| 235/40ZR17 | S | 90W | 617 | 24.3 | 240 | 9.5 | 8.5 | 248 | 9.8 | 4.8 | 6 | ||
| 235/45ZR17 | M | 94W | 645 | 25.4 | 241 | 9.5 | 8.0 | 248 | 9.8 | 4.8 | 6 | ||
| 235/45ZR17 | S | 94W | 645 | 25.4 | 241 | 9.5 | 8.0 | 224 | 8.8 | 4.8 | 6 | ||
| 255/40ZR17 | M | 94W | 637 | 25.1 | 263 | 10.4 | 9.0 | 271 | 10.6 | 4.8 | 6 | ||
| 255/40ZR17 | S | 94W | 637 | 25.1 | 263 | 10.4 | 9.0 | 271 | 10.6 | 4.8 | 6 | ||
| 18 | 225/40ZR18 | M | 92W XL | 634 | 25.0 | 232 | 9.1 | 8.0 | 214 | 8.4 | 4.8 | 6 | |
| 225/40ZR18 | S | 92W XL | 634 | 25.0 | 232 | 9.1 | 8.0 | 214 | 8.4 | 4.8 | 6 | ||
| 235/40ZR18 | M | 91Y | 641 | 25.2 | 242 | 9.5 | 8.5 | 224 | 8.8 | 4.8 | 6 | ||
| 235/40ZR18 | S | 91Y | 642 | 25.3 | 241 | 9.5 | 8.5 | 224 | 8.8 | 4.8 | 6 | ||
| 245/40ZR18 | M | 93Y | 649 | 25.6 | 250 | 9.9 | 8.5 | 243 | 9.6 | 4.8 | 6 | ||
| 245/40ZR18 | S | 93Y | 649 | 25.6 | 250 | 9.9 | 8.5 | 243 | 9.6 | 4.8 | 6 | ||
| 255/35ZR18 | M | 94Y XL | 633 | 24.9 | 253 | 10.0 | 9.0 | 234 | 9.2 | 4.8 | 6 | ||
| 265/35ZR18 | S | 97Y XL | 640 | 25.2 | 268 | 10.5 | 9.5 | 244 | 9.6 | 4.8 | 6 | ||
| 265/35ZR18 | M | 97Y XL | 640 | 25.2 | 268 | 10.5 | 9.5 | 244 | 9.6 | 4.8 | 6 | ||
| 285/30ZR18 | M | 97Y XL | 626 | 24.7 | 284 | 11.2 | 10.0 | 270 | 10.6 | 4.8 | 6 | ||
