UHP

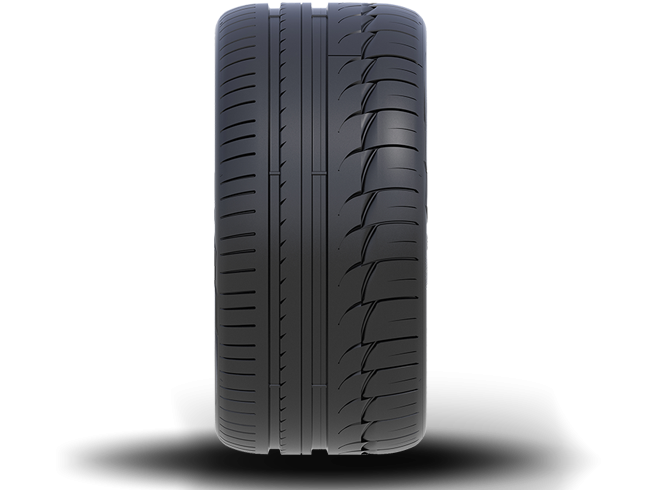

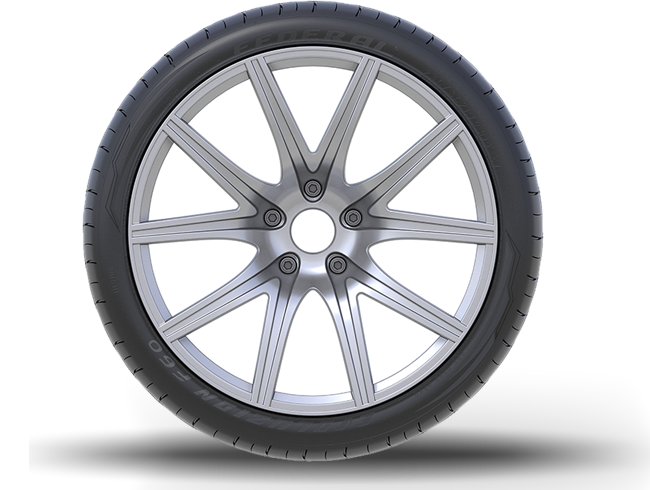

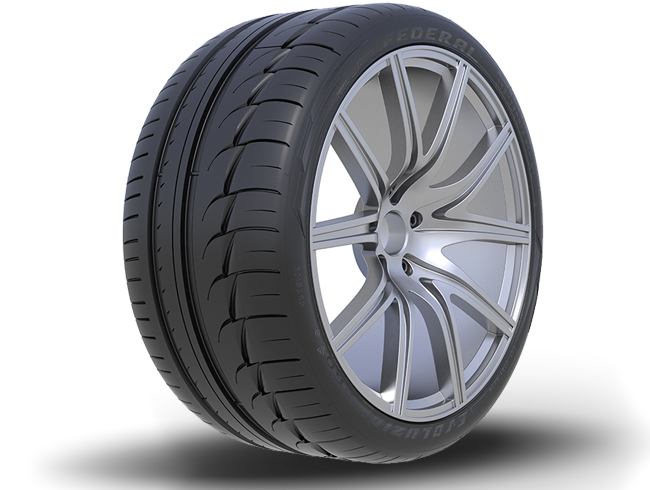

EVOLUZION F60

The Evoluzion F60 is Federal's flagship tire for ultra high performance driving with superior responsiveness, expert handling, incredible braking, and outstanding grip!

Inquire

FEATURES

New silica-infused tread compounds provide outstanding rigidity and enhanced durability.
Reinforced outer tread blocks provide enhanced traction during intensive driving, plus wear resistance.
Triple circumferential grooves and inner tread grooves maximize wet traction at high speed.

Warning

SERIOUS INJURY OR DEATH MAY RESULT FROM：(A) Tire Failure due to underinflation and/or overloading. Consult the owner’s manual or vehicle tire placard. (B) Explosion of tire/rim assembly due to improper mounting. Only trained persons should mount tires.

TIRE MOUNTING SAFETY PRECAUTIONS：1. Follow RMA installation safety procedures for mounting and inflating tires. 2. Always match the rim diameter with tire diameter. 3. Never mount tire on a cracked, bent, or corroded rim. 4. Never put a flammable substance into a tire/rim assembly. 5. Always clean and lubricate rim and tire beads. 6. Never inflate a tire/rim assembly that is not restrained. 7. Always use a clip-on chuck and extension gauge on air hose when inflating and/or seating beads. 8. Never stand next to, lean or reach over the tire/rim assembly when inflating. 9. Never inflate over 40psi (275kPA) to seat beads. 10. Tire pressure should be adjusted to the recommended operating pressure after beads are seated.

Global Dimension Data

Horizontal Scrolling

SER	Size	LI/SS	PR	Overall Diameter		Section Width		Standard Rim in	Approved Rim Width in	Tread Width		Tread Depth		Max. Air Pressure psi	Max. Load		UTQG
SER	Size	LI/SS	PR	mm	in	mm	in	Standard Rim in	Approved Rim Width in	mm	in	mm	in32"	Max. Air Pressure psi	KG	lbs	UTQG
18	225/40ZR18	92Y XL		637	25.1	230	9.1	8.0	7.5 ~ 9.0	207	8.1	7.3	9	50	630	1389	240AA A
	245/40ZR18	97Y XL		653	25.7	248	9.8	8.5	8.0 ~ 9.5	223	8.8	7.3	9	50	730	1609	240AA A
	245/50ZR18	100Y		703	27.7	253	10.0	7.5	7.0 ~ 9.0	207	8.1	7.3	9	50	800	1764	240AA A
	255/35ZR18	94Y XL		635	25.0	260	10.2	9.0	8.5 ~ 10.0	229	9.0	7.3	9	50	670	1477	240AA A
	275/35ZR18	99Y XL		649	25.6	278	10.9	9.5	9.0 ~ 11.0	245	9.6	7.3	9	50	775	1709	240AA A
	295/35ZR18	103Y XL		663	26.1	301	11.9	10.5	10.0 ~ 11.5	265	10.4	7.3	9	50	875	1929	240AA A
19	235/35ZR19	91Y XL		648	25.5	243	9.6	8.5	8.0 ~ 9.5	217	8.5	7.3	9	50	615	1356	240AA A
	245/35ZR19	93Y XL		655	25.8	248	9.8	8.5	8.0 ~ 9.5	218	8.6	7.3	9	50	650	1433	240AA A
	245/50ZR19	105W XL		729	28.7	253	10.0	7.0	7.0 ~ 8.5	207	8.1	7.3	9	50	925	2039	240AA A
	255/35ZR19	96Y XL		665	26.2	256	10.1	9.0	8.5 ~ 10.0	234	9.2	7.3	9	50	710	1565	240AA A
	255/40ZR19	100Y XL		687	27.0	260	10.2	9.0	8.5 ~ 10.0	234	9.2	7.3	9	50	800	1764	240AA A
	265/30ZR19	93Y XL		643	25.3	271	10.7	9.5	9.0 ~ 10.0	257	10.1	7.3	9	50	650	1433	240AA A
	265/35ZR19	98Y XL		670	26.4	269	10.6	9.5	9.0 ~ 10.5	244	9.6	7.3	9	50	750	1653	240AA A
	275/30ZR19	96Y XL		649	25.6	278	10.9	9.5	9.0 ~ 10.0	264	10.4	7.3	9	50	710	1565	240AA A
	275/35ZR19	100Y XL		675	26.6	278	10.9	9.5	9.0 ~ 11.0	245	9.6	7.3	9	50	800	1764	240AA A
	285/30ZR19	98Y XL		655	25.8	290	11.4	10.0	9.5 ~ 10.5	276	10.9	7.3	9	50	750	1653	240AA A
	285/35ZR19	103Y XL		686	27.0	282	11.1	10.0	9.5 ~ 11.0	261	10.3	7.3	9	50	875	1929	240AA A
	305/30ZR19	102Y XL		667	26.3	313	12.3	11.0	10.5 ~ 11.5	298	11.7	7.3	9	50	850	1874	240AA A
20	235/35ZR20	92Y XL		676	26.6	235	9.3	8.5	8.0 ~ 9.5	217	8.5	7.3	9	50	630	1389	240AA A
	245/35ZR20	95Y XL		680	26.8	248	9.8	8.5	8.0 ~ 9.5	218	8.6	7.3	9	50	690	1521	240AA A
	245/40ZR20	99Y XL		704	27.7	248	9.8	8.5	8.0 ~ 9.5	223	8.8	7.3	9	50	775	1709	240AA A
	245/45ZR20	103Y XL		731	28.8	236	9.3	8.0	7.5 ~ 9.0	214	8.4	7.3	9	50	875	1929	240AA A
	255/30ZR20	92Y XL		662	26.1	260	10.2	9.0	8.5 ~ 9.5	248	9.8	7.3	9	50	630	1389	240AA A
	255/35ZR20	97Y XL		686	27.0	260	10.2	9.0	8.5 ~ 10.0	229	9.0	7.3	9	50	730	1609	240AA A
	265/30ZR20	94Y XL		668	26.3	271	10.7	9.5	9.0 ~ 10.0	257	10.1	7.3	9	50	670	1477	240AA A
	265/35ZR20	99Y XL		694	27.3	271	10.7	9.5	9.0 ~ 10.5	238	9.4	7.3	9	50	775	1709	240AA A
	275/35ZR20	102Y XL		700	27.6	278	10.9	9.5	9.0 ~ 11.0	245	9.6	7.3	9	50	850	1874	240AA A
	275/40ZR20	106Y XL		728	28.7	278	10.9	9.5	9.0 ~ 11.0	250	9.8	7.3	9	50	950	2094	240AA A
	285/30ZR20	99Y XL		680	26.8	290	11.4	10.0	9.5 ~ 10.5	276	10.9	7.3	9	50	775	1709	240AA A
	295/30ZR20	101Y XL		691	27.2	294	11.6	10.5	10.0 ~ 11.0	277	10.9	7.3	9	50	825	1819	240AA A
	305/30ZR20	103Y XL		694	27.3	306	12.0	11.0	10.5 ~ 11.5	294	11.6	7.3	9	50	875	1929	240AA A
21	245/35ZR21	96Y XL		705	27.8	248	9.8	8.5	8.0 ~ 9.5	218	8.6	7.3	9	50	710	1565	240AA A
	245/40ZR21	100Y XL		729	28.7	248	9.8	8.5	8.0 ~ 9.5	223	8.8	7.3	9	50	800	1764	240AA A
	265/35ZR21	101Y XL		719	28.3	271	10.7	9.5	9.0 ~ 10.5	238	9.4	7.3	9	50	825	1819	240AA A
	275/35ZR21	103Y XL		725	28.5	278	10.9	9.5	9.0 ~ 11.0	245	9.6	7.3	9	50	875	1929	240AA A
	285/30ZR21	100Y XL		705	27.8	290	11.4	10.0	9.5 ~ 10.5	276	10.9	7.3	9	50	800	1764	240AA A

Europe Dimension Data
