PCR

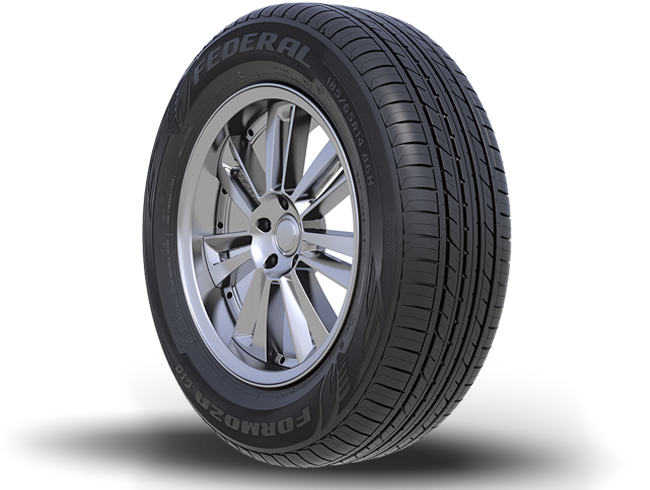

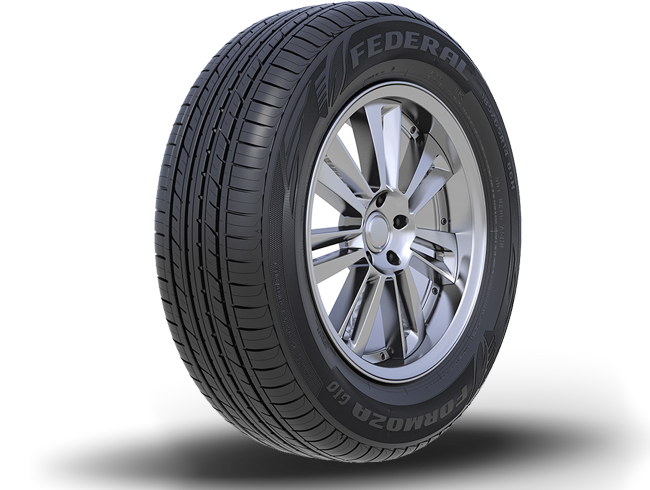

FORMOZA GIO

Engineered for maximum fuel efficiency, the low-rolling-resistance Formoza GIO provides all-season traction and comfortable rides.

Compact
Sedan
Micro
Street
Quiet Ride
M+S
Fuel Efficiency
All Season

FEATURES

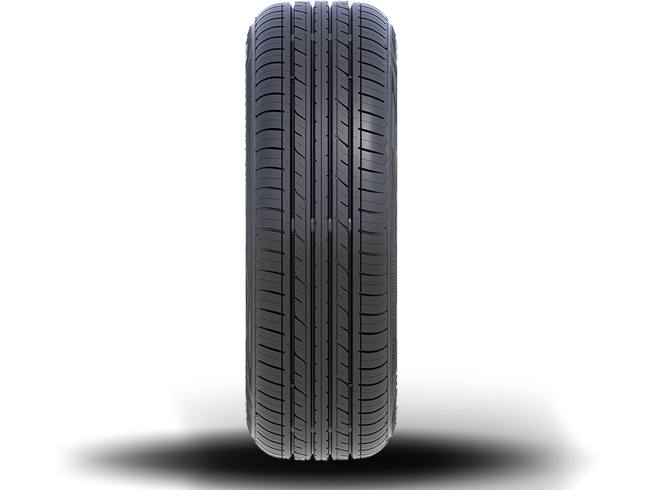

  1. Enclosed tread and tire blocks reduce contact noise for comfortable rides.

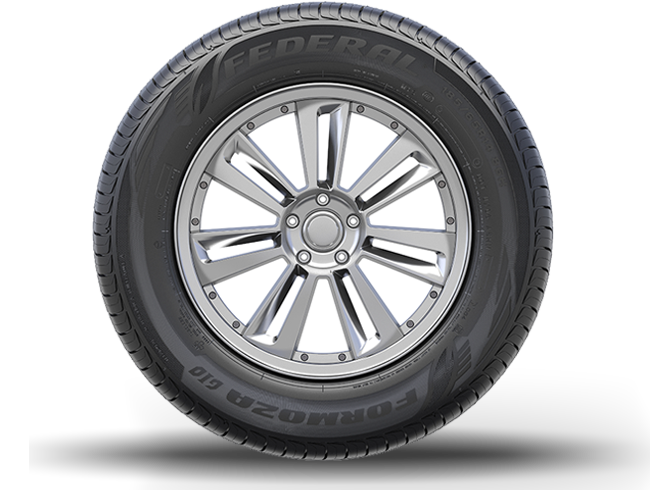

  2. Heat dissipation compounds and honeycomb design on sidewall minimize heat generation and rolling resistance for improved fuel efficiency.
  3. Blade-shaped tread grooves channel water effectively, ensuring safe rides on slippery roads.

Warning

SERIOUS INJURY OR DEATH MAY RESULT FROM:(A) Tire Failure due to underinflation and/or overloading. Consult the owner’s manual or vehicle tire placard. (B) Explosion of tire/rim assembly due to improper mounting. Only trained persons should mount tires.

TIRE MOUNTING SAFETY PRECAUTIONS:1. Follow RMA installation safety procedures for mounting and inflating tires. 2. Always match the rim diameter with tire diameter. 3. Never mount tire on a cracked, bent, or corroded rim. 4. Never put a flammable substance into a tire/rim assembly. 5. Always clean and lubricate rim and tire beads. 6. Never inflate a tire/rim assembly that is not restrained. 7. Always use a clip-on chuck and extension gauge on air hose when inflating and/or seating beads. 8. Never stand next to, lean or reach over the tire/rim assembly when inflating. 9. Never inflate over 40psi (275kPA) to seat beads. 10. Tire pressure should be adjusted to the recommended operating pressure after beads are seated.

Global Dimension Data

Horizontal Scrolling
SER Size LI/SS PR Overall
Diameter
Section
Width
Standard
Rim
in
Approved
Rim Width
in
Tread
Width
Tread
Depth
Max. Air
Pressure
psi
Max.
Load
UTQG
mm in mm in mm in mm in32" KG lbs
13 155/65R13 73T 534 21.0 152 6.0 4.5 4.5 ~ 5.5 114 4.5 6.2 8 44 365 804 420A A
155/70R13 75T 547 21.5 153 6.0 4.5 4.0 ~ 5.0 113 4.4 7.3 9 44 387 853 420A A
155/80R13 79T 577 22.7 159 6.2 4.5 4.0 ~ 5.0 113 4.4 7.0 9 44 437 963 420A A
165/65R13 77H 546 21.5 168 6.6 5.0 4.5 ~ 6.0 124 4.9 6.2 8 44 412 908 420A A
165/70R13 79T 560 22.0 165 6.5 5.0 4.0 ~ 5.5 122 4.8 7.3 9 44 437 963 420A A
175/70R13 82H 575 22.6 175 6.9 5.0 4.5 ~ 6.0 127 5.0 7.5 9 44 475 1047 420A A
14 165/55R14 72V 538 21.2 171 6.7 5.0 4.5 ~ 6.0 133 5.2 7.3 9 44 355 783 420A A
165/60R14 75H 558 22.0 165 6.5 5.0 4.5 ~ 6.0 122 4.8 6.6 8 44 387 853 420A A
165/65R14 79T 575 22.6 168 6.6 5.0 4.5 ~ 6.0 124 4.9 6.2 8 44 437 963 420A A
165/70R14 81T 584 23.0 166 6.5 5.0 4.0 ~ 5.5 120 4.7 7.3 9 44 462 1018 420A A
175/60R14 79H 564 22.2 176 6.9 5.0 5.0 ~ 6.0 127 5.0 7.0 9 44 437 963 420A A
175/65R14 82H 582 22.9 176 6.9 5.0 5.0 ~ 6.0 128 5.0 7.2 9 44 475 1047 420A A
175/65R14 86T XL 582 22.9 180 7.1 5.0 5.0 ~ 6.0 128 5.0 7.2 9 50 530 1168 420A A
175/70R14 84H 599 23.6 175 6.9 5.0 4.5 ~ 6.0 125 4.9 7.5 9 44 500 1102 420A A
185/60R14 82H 578 22.8 189 7.4 5.5 5.0 ~ 6.5 136 5.4 7.4 9 44 475 1047 420A A
185/65R14 86H 598 23.5 191 7.5 5.5 5.0 ~ 6.5 138 5.4 7.2 9 44 530 1168 420A A
185/70R14 88H 612 24.1 186 7.3 5.5 4.5 ~ 6.0 134 5.3 7.9 10 44 560 1234 420A A
195/65R14 89H 609 24.0 199 7.8 6.0 5.5 ~ 7.0 144 5.7 7.2 9 44 580 1279 420A A
195/70R14 91H 626 24.6 197 7.7 6.0 5.0 ~ 6.5 142 5.6 7.9 10 44 615 1356 420A A
15 165/45R15 68V 533 21.0 164 6.4 5.5 5.0 ~ 6.0 137 5.4 7.3 9 44 315 694 420A A
165/50R15 73V 552 21.7 164 6.4 5.0 4.5 ~ 6.0 133 5.2 7.2 9 44 365 805 420A A
185/60R15 84H 609 24.0 187 7.4 5.5 5.0 ~ 6.5 140 5.5 7.9 10 44 500 1102 420A A
185/65R15 88H 626 24.6 190 7.5 5.5 5.0 ~ 6.5 138 5.4 7.2 9 44 560 1235 420A A
195/60R15 88H 621 24.4 197 7.7 6.0 5.5 ~ 7.0 144 5.7 7.4 9 44 560 1235 420A A
195/65R15 91H 633 24.9 199 7.8 6.0 5.5 ~ 7.0 144 5.7 7.2 9 44 615 1356 420A A
195/65R15 95T XL 632 24.9 204 8.0 6.0 5.5 ~ 7.0 144 5.7 7.2 9 50 690 1521 420A A
205/60R15 91H 629 24.8 208 8.2 6.0 5.5 ~ 7.5 150 5.9 7.7 10 44 615 1355 420A A
205/65R15 95H 648 25.5 209 8.2 6.0 5.5 ~ 7.0 150 5.9 7.6 10 44 690 1521 420A A
215/65R15 96H 659 25.9 221 8.7 6.5 6.0 ~ 7.5 160 6.3 7.6 10 44 710 1565 420A A
225/60R15 96V 651 25.6 222 8.8 6.5 6.0 ~ 8.0 173 6.8 8.0 10 44 710 1565 420A A
16 205/60R16 92H 657 25.9 204 8.0 6.0 5.5 ~ 7.5 150 5.9 7.7 10 44 630 1388 420A A
215/60R16 95H 668 26.3 218 8.6 6.5 6.0 ~ 7.5 167 6.6 7.7 10 44 690 1521 420A A
225/60R16 98H 673 26.5 227 8.9 6.5 6.0 ~ 8.0 173 6.8 8.0 10 44 750 1653 420A A

Europe Dimension Data

Horizontal Scrolling
SER Size LI/SS PR Overall
Diameter
Section
Width
Standard
Rim
in
Approved
Rim Width
in
Tread
Width
Tread
Depth
Max. Air
Pressure
psi
Max.
Load
UTQG Tyres RR Wet
Grip
dBS E_sound
mm in mm in mm in mm in32" KG lbs
For details please contact our sales representatives.
