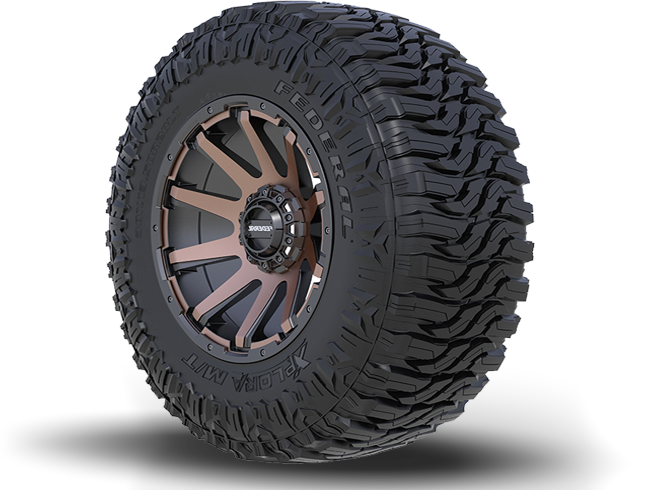

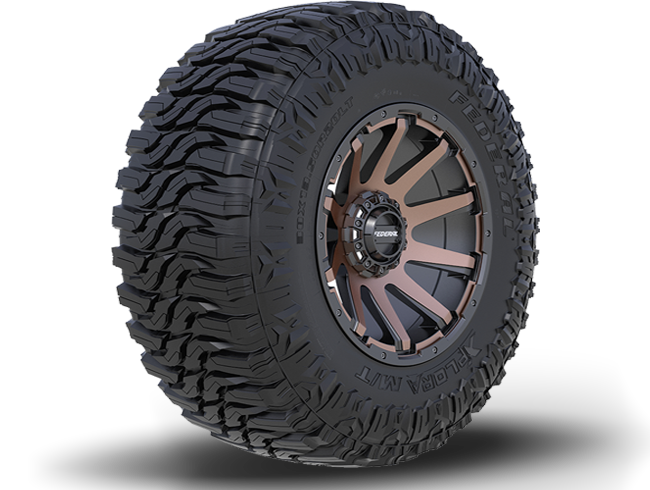

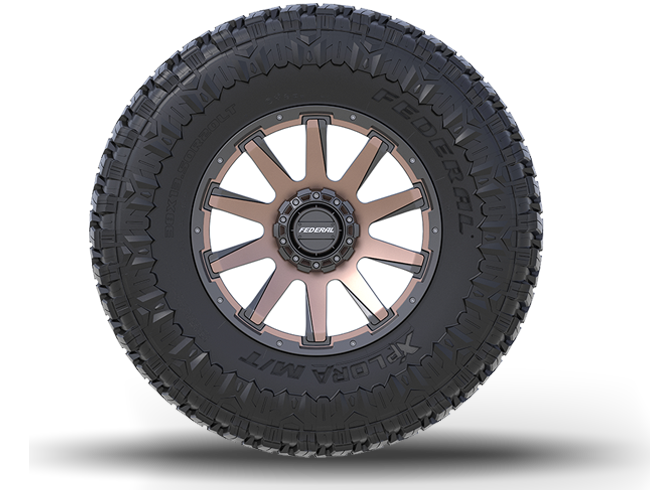

XPLORA M/T
Federal's all-new Xplora M/T dominates all terrain, pushing you through gravel trails and muddy bogs with ferocious looks, exceptional traction, safety, and tranquility.
FEATURES

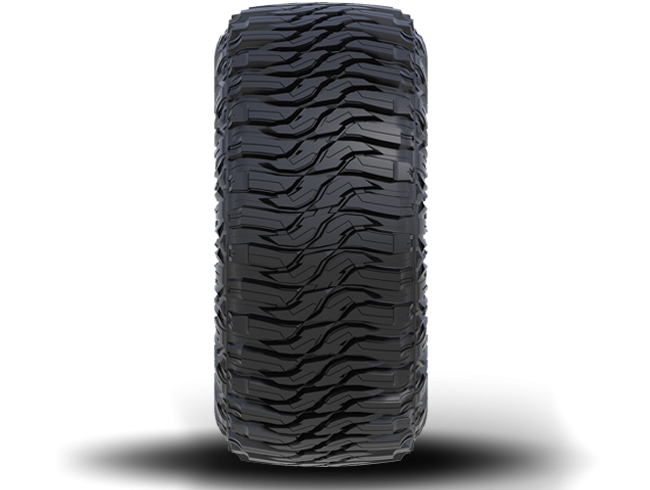

- Wild, hook-shaped tread design provides increased driving force while eliminating tire block deformation for elevated off-road grip.
- Staggered shoulder blocks not only deliver even more ferocious looks but also expel sludge and snow effectively for maximum off-road traction.
- Next-gen, high-tensile compounds lead to comprehensive resistance against cracks and fatigue, cuts and chips, and rubber deterioration and aging for improved safety and durability.
- Tie bar, multi-pitch tread designs, plus randomized tread block size and shape contribute to a quieter drive.
Warning
SERIOUS INJURY OR DEATH MAY RESULT FROM：(A) Tire Failure due to underinflation and/or overloading. Consult the owner’s manual or vehicle tire placard. (B) Explosion of tire/rim assembly due to improper mounting. Only trained persons should mount tires.
TIRE MOUNTING SAFETY PRECAUTIONS：1. Follow RMA installation safety procedures for mounting and inflating tires. 2. Always match the rim diameter with tire diameter. 3. Never mount tire on a cracked, bent, or corroded rim. 4. Never put a flammable substance into a tire/rim assembly. 5. Always clean and lubricate rim and tire beads. 6. Never inflate a tire/rim assembly that is not restrained. 7. Always use a clip-on chuck and extension gauge on air hose when inflating and/or seating beads. 8. Never stand next to, lean or reach over the tire/rim assembly when inflating. 9. Never inflate over 40psi (275kPA) to seat beads. 10. Tire pressure should be adjusted to the recommended operating pressure after beads are seated.
Global Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | ||||||||
| 16 | LT245/75R16 | 120/116Q | 10 | 780 | 30.7 | 252 | 9.9 | 7.0 | 6.5 ~ 8.0 | 198 | 7.8 | 15.0 | 19 | 80 | 1380/1260 | 3042/2778 | |
| LT265/75R16 | 123/120Q | 10 | 810 | 31.9 | 268 | 10.6 | 7.5 | 7.0 ~ 8.0 | 214 | 8.4 | 15.0 | 19 | 80 | 1550/1400 | 3415/3085 | ||
| LT285/75R16 | 126/123Q | 10 | 840 | 33.1 | 291 | 11.5 | 8.0 | 7.5 ~ 9.0 | 229 | 9.0 | 15.3 | 19 | 80 | 1700/1550 | 3750/3415 | ||
| 17 | 35*12.50R17 | 121Q | 10 | 883 | 34.8 | 322 | 12.7 | 10.0 | 8.5 ~ 11.0 | 254 | 10.0 | 16.0 | 20 | 65 | 1450 | 3195 | |
| LT265/70R17 | 121/118Q | 10 | 810 | 31.9 | 276 | 10.9 | 8.0 | 7.0 ~ 8.5 | 278 | 8.6 | 15.0 | 19 | 80 | 1450/1320 | 3195/2910 | ||
| LT285/70R17 | 121/118Q | 10 | 838 | 33.0 | 296 | 11.7 | 8.5 | 7.5 ~ 9.5 | 234 | 9.2 | 15.3 | 19 | 80 | 1450/1320 | 3195/2910 | ||
| 18 | 33*12.50R18 | 118Q | 10 | 832 | 32.8 | 324 | 12.8 | 10.0 | 8.5 ~ 11.0 | 254 | 10.0 | 15.0 | 18 | 65 | 1320 | 2910 | |
| 37*13.50R18 | 124Q | 8 | 932 | 36.7 | 367 | 14.5 | 11.0 | 8.5 ~ 11.0 | 273 | 10.7 | 16.0 | 20 | 50 | 1600 | 3525 | ||
| LT285/70R18 | 127/124Q | 10 | 863 | 34.0 | 308 | 12.1 | 8.5 | 7.5 ~ 9.5 | 228 | 9.0 | 15.3 | 19 | 80 | 1750/1600 | 3860/3525 | ||
| 20 | 33*12.50R20 | 119Q | 12 | 832 | 32.8 | 320 | 12.6 | 10.0 | 8.5 ~ 11.0 | 254 | 10.2 | 15.0 | 19 | 80 | 1360 | 3000 | |
| 35*12.50R20 | 125Q | 12 | 883 | 34.8 | 324 | 12.8 | 10.0 | 8.5 ~ 11.0 | 254 | 10.0 | 16.0 | 20 | 80 | 1650 | 3640 | ||
| 37*13.50R20 | 127Q | 10 | 934 | 36.8 | 350 | 13.8 | 11.0 | 8.5 ~ 11.0 | 276 | 10.9 | 16.0 | 20 | 65 | 1750 | 3860 | ||
| LT295/65R20 | 129/126P | 10 | 896 | 35.3 | 296 | 11.6 | 8.5 | 8.0 ~ 10.0 | 242 | 9.5 | 15.3 | 19 | 80 | 1850/1700 | 4080/3750 | ||
Europe Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | Tyres | RR | Wet Grip |
dBS | E_sound | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | |||||||||||||
| For details please contact our sales representatives. | ||||||||||||||||||||||
