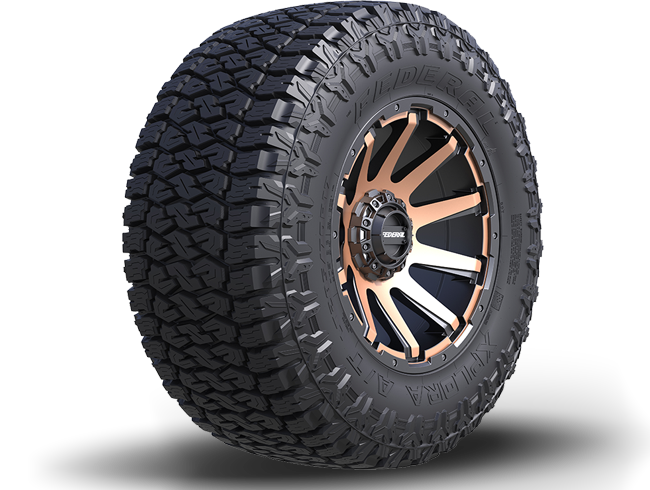

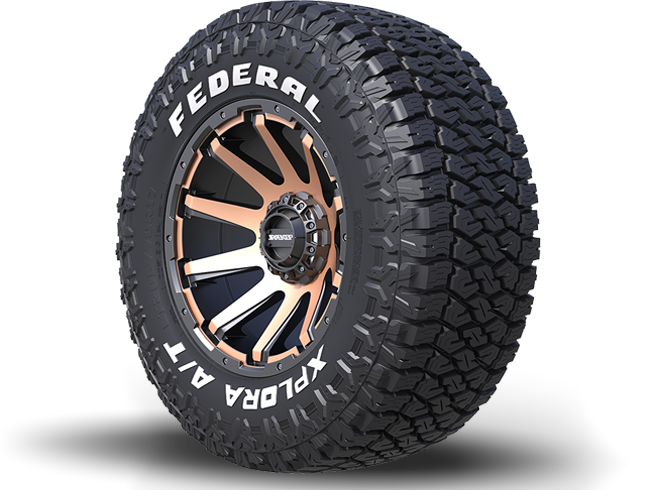

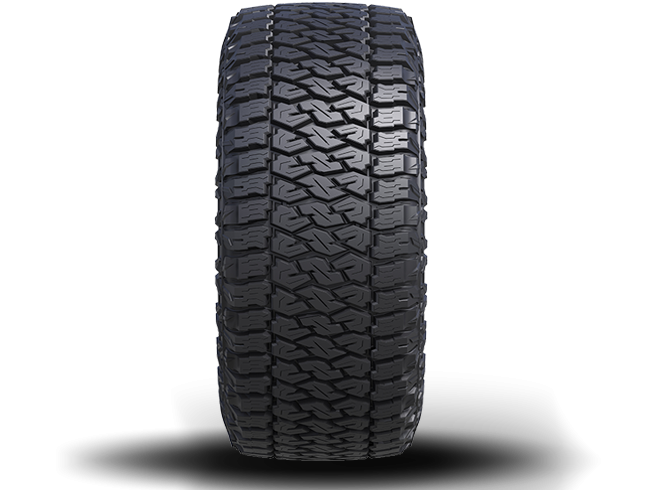

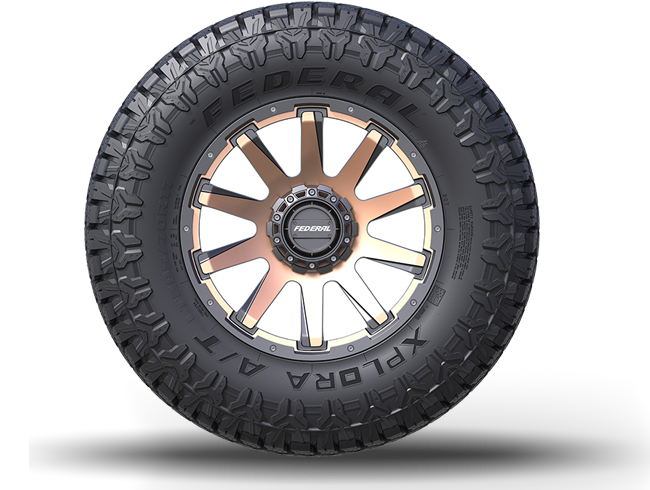

XPLORA A/T
The all-new Xplora A/T is your ideal all-terrain tire for SUVs and light trucks. It is the perfect combination of both on-/off-road handling, durability, and quiet rides.
FEATURES
- The all-new Xplora A/T is your ideal all-terrain tire for SUVs and light trucks. It is the perfect combinationof both on-/off-road handling, durability, and quiet rides.
- Next-gen compounds help improve durability and longevity while stone ejectors prevent sharp stonesfrom attaching to the tire's tread surface and penetrating the tire structure.
- Four main grooves with straight and jagged designs and slanted lateral grooves effectively dispersewater for improved wet traction.
- Tie bar in shoulder areas reduces noise for comfortable rides at high speed.
Warning
SERIOUS INJURY OR DEATH MAY RESULT FROM：(A) Tire Failure due to underinflation and/or overloading. Consult the owner’s manual or vehicle tire placard. (B) Explosion of tire/rim assembly due to improper mounting. Only trained persons should mount tires.
TIRE MOUNTING SAFETY PRECAUTIONS：1. Follow RMA installation safety procedures for mounting and inflating tires. 2. Always match the rim diameter with tire diameter. 3. Never mount tire on a cracked, bent, or corroded rim. 4. Never put a flammable substance into a tire/rim assembly. 5. Always clean and lubricate rim and tire beads. 6. Never inflate a tire/rim assembly that is not restrained. 7. Always use a clip-on chuck and extension gauge on air hose when inflating and/or seating beads. 8. Never stand next to, lean or reach over the tire/rim assembly when inflating. 9. Never inflate over 40psi (275kPA) to seat beads. 10. Tire pressure should be adjusted to the recommended operating pressure after beads are seated.
Global Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | ||||||||
| 15 | 30X9.50R15LT | 104S | 6 | 747 | 29.4 | 248 | 9.8 | 7.5 | 6.0 ~ 8.0 | 192 | 7.6 | 13.4 | 17 | 50 | 900 | 1985 | |
| 31X10.50R15LT | 109S | 6 | 771 | 30.3 | 275 | 10.8 | 8.5 | 7.0 ~ 9.0 | 214 | 8.4 | 13.4 | 17 | 50 | 1030 | 2270 | ||
| 16 | LT215/85R16 | 115/112R | 10 | 723 | 28.4 | 211 | 8.3 | 6.0 | 5.5 ~ 7.0 | 173 | 6.8 | 12.9 | 16 | 80 | 1215/1120 | 2680/2470 | |
| LT225/75R16 | 115/112S | 10 | 746 | 29.4 | 218 | 8.6 | 6.0 | 6.0 ~ 7.5 | 188 | 7.4 | 12.9 | 16 | 80 | 1215/1120 | 2680/2470 | ||
| LT235/85R16 | 120/116S | 10 | 805 | 31.7 | 234 | 9.2 | 6.5 | 6.0 ~ 7.5 | 188 | 7.4 | 12.9 | 16 | 80 | 1380/1260 | 3042/2778 | ||
| LT245/75R16 | 120/116S | 10 | 775 | 30.5 | 243 | 9.6 | 7.0 | 6.5 ~ 8.0 | 198 | 7.8 | 12.9 | 16 | 80 | 1380/1260 | 3042/2778 | ||
| LT265/75R16 | 123/120R | 10 | 804 | 31.6 | 261 | 10.3 | 7.5 | 7.0 ~ 9.0 | 214 | 8.4 | 12.9 | 16 | 80 | 1550/1400 | 3415/3085 | ||
| LT285/75R16 | 126/123S | 10 | 834 | 32.8 | 292 | 11.5 | 8.0 | 7.5 ~ 9.5 | 229 | 9.0 | 13.4 | 17 | 80 | 1700/1550 | 3750/3415 | ||
| 17 | LT285/70R17 | 121/118S | 10 | 831 | 32.7 | 294 | 11.6 | 8.5 | 7.5 ~ 9.5 | 234 | 9.2 | 13.4 | 17 | 80 | 1450/1320 | 3195/2910 | |
| P225/65R17 | 102H | 722 | 28.4 | 222 | 8.7 | 6.5 | 6.0 ~ 8.0 | 182 | 7.2 | 10.2 | 13 | 44 | 850 | 1874 | 660A B | ||
| P235/65R17 | 103H | 736 | 29.0 | 234 | 9.2 | 7.0 | 6.5 ~ 8.5 | 192 | 7.6 | 10.2 | 13 | 44 | 875 | 1929 | 660A B | ||
| P235/75R17 | 108T | 782 | 30.8 | 231 | 9.1 | 6.5 | 6.0 ~ 8.0 | 188 | 7.4 | 10.2 | 13 | 44 | 1000 | 2205 | 660A B | ||
| P245/65R17 | 105T | 749 | 29.5 | 244 | 9.6 | 7.0 | 7.0 ~ 8.5 | 198 | 7.8 | 10.2 | 13 | 44 | 925 | 2039 | 660A B | ||
| P255/70R17 | 112T | 785 | 30.9 | 261 | 10.3 | 7.5 | 6.5 ~ 8.5 | 207 | 8.1 | 10.2 | 13 | 44 | 1120 | 2469 | 660A B | ||
| P265/65R17 | 112T | 771 | 30.4 | 267 | 10.5 | 8.0 | 7.5 ~ 9.5 | 216 | 8.5 | 10.2 | 13 | 44 | 1120 | 2469 | 660A B | ||
| P285/70R17 | 117T | 826 | 32.5 | 294 | 11.6 | 8.5 | 7.5 ~ 9.5 | 234 | 9.2 | 10.2 | 13 | 44 | 1285 | 2833 | 660A B | ||
| 18 | LT265/70R18 | 124/121S | 10 | 826 | 32.5 | 264 | 10.4 | 8.0 | 7.0 ~ 9.0 | 217 | 8.5 | 12.9 | 16 | 80 | 1600/1450 | 3525/3195 | |
| LT275/65R18 | 123/120S | 10 | 816 | 32.1 | 275 | 10.8 | 8.0 | 8.0 ~ 9.5 | 223 | 8.8 | 12.9 | 16 | 80 | 1550/1400 | 3415/3085 | ||
| LT275/70R18 | 125/122S | 10 | 841 | 33.1 | 273 | 10.8 | 8.0 | 7.0 ~ 9.0 | 223 | 8.8 | 12.9 | 16 | 80 | 1650/1500 | 3640/3305 | ||
| P255/70R18 | 113T | 810 | 31.9 | 255 | 10.0 | 7.5 | 6.5 ~ 8.5 | 203 | 8.0 | 10.2 | 13 | 44 | 1150 | 2535 | 660A B | ||
| P265/60R18 | 114T XL | 775 | 30.5 | 264 | 10.4 | 8.0 | 7.5 ~ 9.5 | 218 | 8.6 | 10.2 | 13 | 50 | 1180 | 2601 | 660A B | ||
| P265/65R18 | 114T | 799 | 31.4 | 259 | 10.2 | 8.0 | 7.5 ~ 9.5 | 217 | 8.5 | 10.2 | 13 | 44 | 1180 | 2601 | 660A B | ||
| P275/65R18 | 116T | 812 | 32.0 | 269 | 10.6 | 8.0 | 7.5 ~ 9.5 | 223 | 8.8 | 10.2 | 13 | 44 | 1250 | 2756 | 660A B | ||
| 20 | 33X12.50R20LT | 119Q | 12 | 827 | 32.6 | 297 | 11.7 | 10.0 | 8.5 ~ 11.0 | 254 | 10.0 | 13.4 | 17 | 80 | 1360 | 3000 | |
| 35X12.50R20LT | 125Q | 12 | 877 | 34.5 | 308 | 12.1 | 10.0 | 8.5 ~ 11.0 | 254 | 10.0 | 13.4 | 17 | 80 | 1650 | 3640 | ||
| LT265/60R20 | 121/118S | 10 | 827 | 32.6 | 261 | 10.3 | 8.0 | 8.0 ~ 9.5 | 218 | 8.6 | 12.9 | 16 | 80 | 1450/1320 | 3195/2910 | ||
| LT275/65R20 | 126/123S | 10 | 869 | 34.2 | 274 | 10.8 | 8.0 | 8.0 ~ 9.5 | 223 | 8.8 | 12.9 | 16 | 80 | 1700/1550 | 3750/3415 | ||
| P265/50R20 | 111T XL | 774 | 30.5 | 265 | 10.4 | 8.5 | 7.5 ~ 9.5 | 222 | 8.7 | 10.2 | 13 | 50 | 1090 | 2403 | 660A B | ||
| P275/55R20 | 117T XL | 812 | 32.0 | 277 | 10.9 | 8.5 | 7.5 ~ 9.5 | 227 | 8.9 | 10.2 | 13 | 50 | 1285 | 2833 | 660A B | ||
| P305/50R20 | 120T XL | 812 | 32.0 | 303 | 11.9 | 9.5 | 8.5 ~ 11.0 | 253 | 10.0 | 10.2 | 13 | 50 | 1400 | 3086 | 660A B | ||
| 22 | 33X12.50R22LT | 121Q | 12 | 827 | 32.5 | 292 | 11.5 | 10.0 | 8.5 ~ 11.0 | 254 | 10.0 | 13.4 | 17 | 80 | 1450 | 3195 | |
| 35X12.50R22LT | 121Q | 12 | 878 | 34.6 | 300 | 11.8 | 10.0 | 8.5 ~ 11.0 | 254 | 10.0 | 13.4 | 17 | 80 | 1450 | 3195 | ||
| P285/45R22 | 114H XL | 819 | 32.2 | 272 | 10.7 | 9.5 | 9.0 ~ 10.5 | 234 | 9.2 | 10.2 | 13 | 50 | 1180 | 2601 | 660A B | ||
Europe Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | Tyres | RR | Wet Grip |
dBS | E_sound | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | |||||||||||||
| For details please contact our sales representatives. | ||||||||||||||||||||||
