XPLORA MTS
The Xplora MTS appeals to swag pickup tuning enthusiasts who crave for center of attention and sporty driving performance!
FEATURES

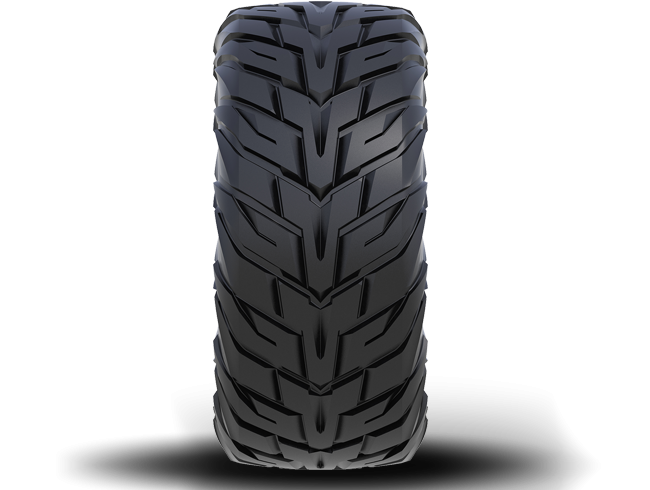

- Bulky armor-appearance tread patterns and high-intensity compounds accentuate menacing looks, with outstanding steering and control.
- Linear, unidirectional grooves allow for swift water dispersion and quiet rides.
- Subtle V-shaped grooves and sleek sidewalls achieve the perfect balance of ruggedness and looks.
- Reinforced compounds and construction contribute to enhanced durability.
Warning
SERIOUS INJURY OR DEATH MAY RESULT FROM：(A) Tire Failure due to underinflation and/or overloading. Consult the owner’s manual or vehicle tire placard. (B) Explosion of tire/rim assembly due to improper mounting. Only trained persons should mount tires.
TIRE MOUNTING SAFETY PRECAUTIONS：1. Follow RMA installation safety procedures for mounting and inflating tires. 2. Always match the rim diameter with tire diameter. 3. Never mount tire on a cracked, bent, or corroded rim. 4. Never put a flammable substance into a tire/rim assembly. 5. Always clean and lubricate rim and tire beads. 6. Never inflate a tire/rim assembly that is not restrained. 7. Always use a clip-on chuck and extension gauge on air hose when inflating and/or seating beads. 8. Never stand next to, lean or reach over the tire/rim assembly when inflating. 9. Never inflate over 40psi (275kPA) to seat beads. 10. Tire pressure should be adjusted to the recommended operating pressure after beads are seated.
Global Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | ||||||||
| 17 | LT315/70 R17 | 121/118Q | 10 | 875 | 34.4 | 337 | 13.3 | 9.5 | 8.0 ~ 11.0 | 258 | 10.2 | 16.0 | 20 | 65 | 1450/1320 | 3195/2910 | |
| LT265/70R17 | 121/118Q | 10 | 808 | 31.8 | 279 | 11.0 | 8.0 | 7.0 ~ 8.5 | 218 | 8.6 | 14.6 | 18 | 80 | 1450/1320 | 3195/2910 | ||
| LT285/70R17 | 121/118Q | 10 | 835 | 32.9 | 302 | 11.9 | 8.5 | 7.5 ~ 9.0 | 234 | 9.2 | 16.0 | 20 | 80 | 1450/1320 | 3195/2910 | ||
| 18 | LT275/65 R18 | 123/120Q | 10 | 819 | 32.2 | 278 | 10.9 | 8.0 | 7.5 ~ 9.0 | 223 | 8.8 | 14.6 | 18 | 80 | 1550/1400 | 3415/3085 | |
| 20 | 35X12.50R20LT | 121Q | 10 | 878 | 34.6 | 326 | 12.8 | 10.0 | 8.5 ~ 11.0 | 251 | 9.9 | 16.3 | 21 | 65 | 1450 | 3195 | |
Europe Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | Tyres | RR | Wet Grip |
dBS | E_sound | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | |||||||||||||
| For details please contact our sales representatives. | ||||||||||||||||||||||
