SUV & 4X4

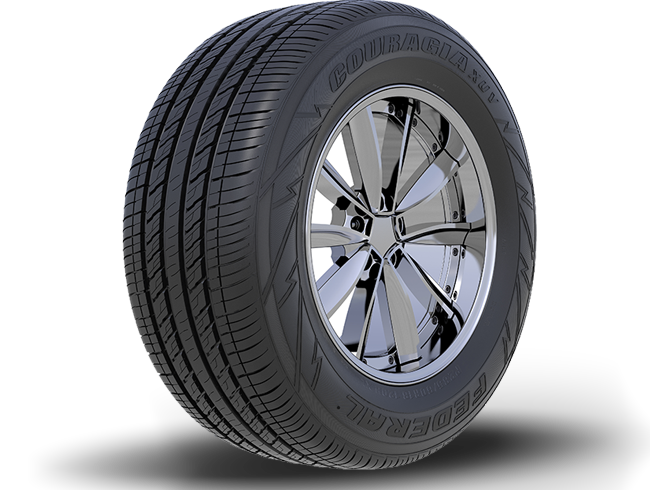

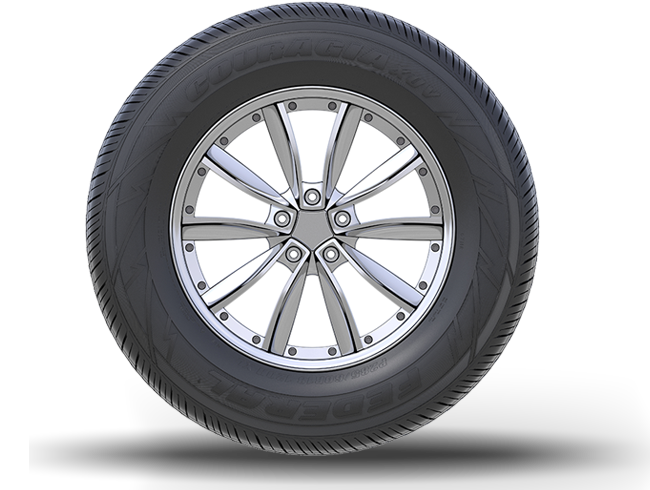

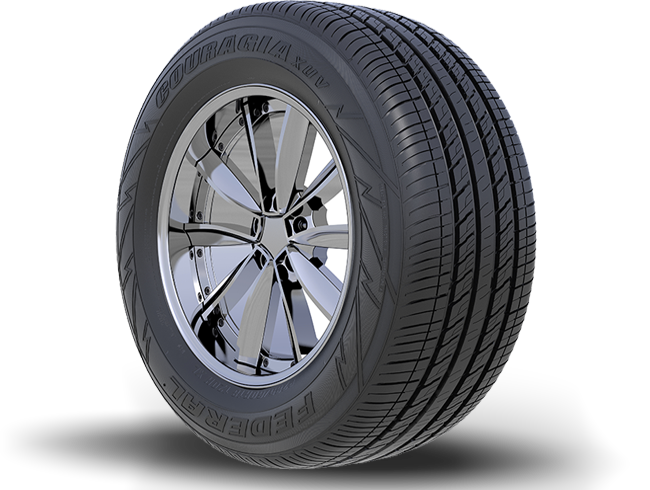

COURAGIA XUV

The Couragia XUV delivers premium SUV drivers superb handling, all-season traction, and comfort.

Inquire

FEATURES

Four circumferential grooves enable maximum water dispersion.
Optimal tread design delivers better grip with increased contact with the road surface.
Optimized patterns and sipes help provide traction and reduce noise.
Reinforced central rib delivers straight line stability at high speed.

Warning

SERIOUS INJURY OR DEATH MAY RESULT FROM：(A) Tire Failure due to underinflation and/or overloading. Consult the owner’s manual or vehicle tire placard. (B) Explosion of tire/rim assembly due to improper mounting. Only trained persons should mount tires.

TIRE MOUNTING SAFETY PRECAUTIONS：1. Follow RMA installation safety procedures for mounting and inflating tires. 2. Always match the rim diameter with tire diameter. 3. Never mount tire on a cracked, bent, or corroded rim. 4. Never put a flammable substance into a tire/rim assembly. 5. Always clean and lubricate rim and tire beads. 6. Never inflate a tire/rim assembly that is not restrained. 7. Always use a clip-on chuck and extension gauge on air hose when inflating and/or seating beads. 8. Never stand next to, lean or reach over the tire/rim assembly when inflating. 9. Never inflate over 40psi (275kPA) to seat beads. 10. Tire pressure should be adjusted to the recommended operating pressure after beads are seated.

Global Dimension Data

Horizontal Scrolling

SER	Size	LI/SS	PR	Overall Diameter		Section Width		Standard Rim in	Approved Rim Width in	Tread Width		Tread Depth		Max. Air Pressure psi	Max. Load		UTQG
SER	Size	LI/SS	PR	mm	in	mm	in	Standard Rim in	Approved Rim Width in	mm	in	mm	in32"	Max. Air Pressure psi	KG	lbs	UTQG
15	P205/70R15	96T		669	26.3	207	8.1	6.0	5.0 ~ 7.0	161	6.3	8.6	11	44	710	1565	740A A
15	P265/70R15	112H		755	29.7	264	10.4	8.0	7.0 ~ 9.0	198	7.8	8.8	11	44	1120	2469	740A A
16	P215/65R16	98H		688	27.1	222	8.7	6.5	6.0 ~ 7.0	168	6.6	8.3	10	44	750	1653	740A A
	P215/70R16	100H		708	27.9	223	8.8	6.5	5.5 ~ 7.0	171	6.7	8.9	11	44	800	1764	740A A
	P225/70R16	103H		725	28.5	230	9.1	6.5	6.0 ~ 7.5	166	6.5	8.6	11	44	875	1929	740A A
	P235/60R16	100H		687	27.0	236	9.3	7.0	6.5 ~ 8.5	187	7.4	8.4	11	44	800	1764	740A A
	P235/70R16	106T		745	29.3	241	9.5	7.0	6.0 ~ 8.0	174	6.9	8.7	11	44	950	2094	740A A
	P245/70R16	107H		752	29.6	247	9.7	7.0	6.5 ~ 8.0	180	7.1	8.7	11	44	975	2150	740A A
	P255/65R16	109T		739	29.1	264	10.4	7.5	7.0 ~ 8.0	182	7.2	9.0	11	44	1030	2271	740A A
	P255/70R16	111T		766	30.2	256	10.1	7.5	6.5 ~ 8.5	189	7.4	8.8	11	44	1090	2403	740A A
17	P225/60R17	99H		703	27.7	224	8.8	6.5	6.0 ~ 8.0	178	7.0	8.2	10	44	775	1708	740A A
	P225/65R17	102H		722	28.4	229	9.0	6.5	6.0 ~ 8.0	174	6.9	8.3	10	44	850	1874	740A A
	P235/55R17	103H XL		690	27.2	240	9.4	7.5	6.5 ~ 8.5	200	7.9	8.0	10	50	875	1929	740A A
	P235/60R17	102T		716	28.2	238	9.4	7.0	6.5 ~ 8.5	187	7.4	8.4	11	44	850	1874	740A A
	P235/65R17	104H		739	29.1	237	9.3	7.0	6.5 ~ 8.5	167	6.6	8.3	10	44	900	1984	740A A
	P245/65R17	111H XL		748	29.4	253	10.0	7.0	7.0 ~ 8.0	189	7.4	8.6	11	50	1090	2403	740A A
	P255/60R17	106V		738	29.1	259	10.2	7.5	7.0 ~ 9.0	201	7.9	8.4	11	44	950	2094	740A A
18	P225/55R18	98V		706	27.8	231	9.1	7.0	6.0 ~ 8.0	192	7.6	7.9	10	44	750	1653	740A A
	P235/55R18	104V XL		715	28.1	244	9.6	7.5	6.5 ~ 8.5	201	7.9	8.3	10	50	900	1984	740A A
	P235/65R18	106H		766	30.2	236	9.3	7.0	6.5 ~ 8.5	168	6.6	8.6	11	44	950	2094	740A A
	P245/60R18	105H		752	29.6	244	9.6	7.0	7.0 ~ 8.5	194	7.6	8.4	11	44	925	2039	740A A
	P255/65R18	109S		795	31.3	256	10.1	7.5	7.0 ~ 9.0	183	7.2	9.0	11	44	1030	2271	740A A
	P265/60R18	110H		775	30.5	263	10.4	8.0	7.5 ~ 9.5	211	8.3	8.4	11	44	1060	2337	740A A
	P285/60R18	120H XL		800	31.5	285	11.2	8.5	8.0 ~ 10.0	227	8.9	8.6	11	50	1400	3086	740A A
19	P255/60R19	109H		795	31.3	256	10.1	7.5	7.0 ~ 9.0	201	7.9	8.4	11	44	1030	2271	740A A
20	P245/50R20	102H		762	30.0	242	9.5	7.5	7.0 ~ 8.5	202	8.0	8.0	10	44	850	1874	740A A
20	P255/50R20	109H XL		769	30.3	258	10.2	8.0	7.0 ~ 9.0	212	8.3	7.7	10	50	1030	2271	740A A

Europe Dimension Data
