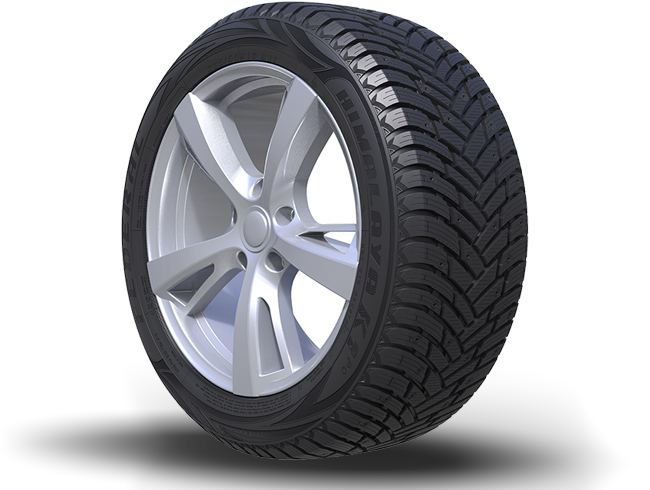

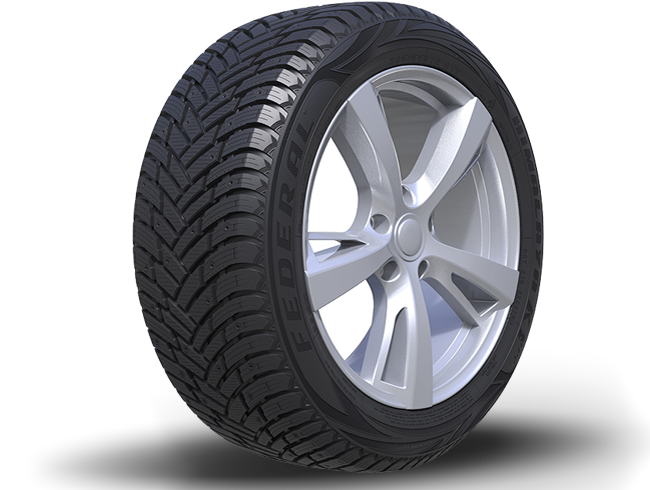

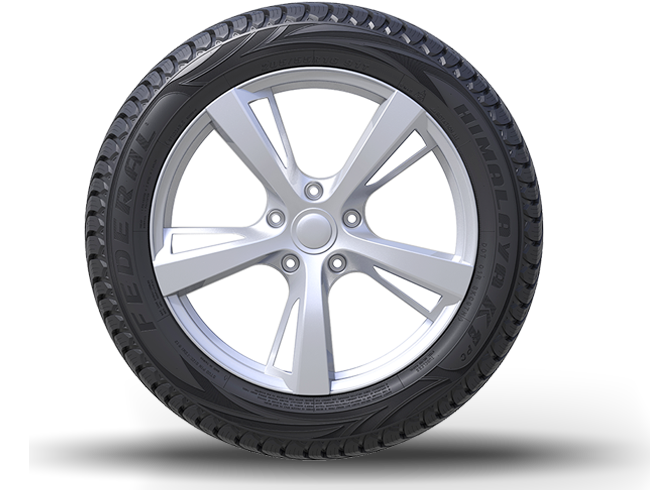

HIMALAYA K1 PC
The Himalaya K1 PC provides superb traction, cornering, and braking performance when driving through snow, ice, and rain.
FEATURES

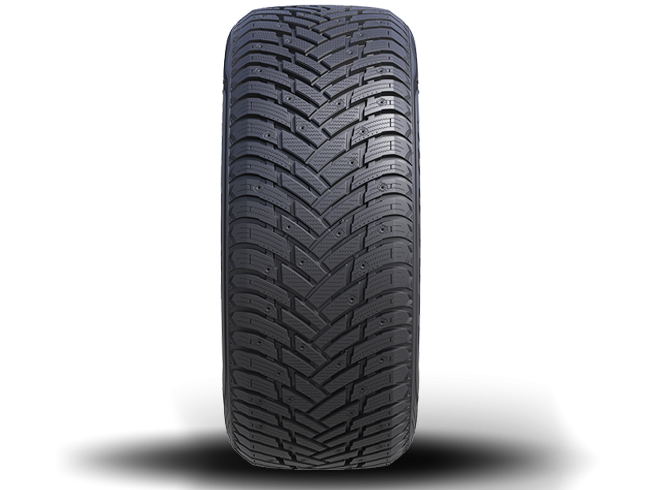

- V-shaped grooves enhance water/slush dispersion efficiency and cornering stability.
- Central tread blocks enhance straight line stability and responsiveness on snow and slush.
- 3D-blade-design sipes maximize contact areas and biting edges with balanced tire toughness for optimal steering and braking control on snow and ice.
- Coupling agents are used to decrease friction between macromolecules and precipitated silica particles while increasing rubber dynamic stiffness.
- Slanted lateral grooves and micro holes improve snow- and water-channeling efficiency for increased traction.
- Reinforced tire shoulder blocks increase lateral grip, cornering stability, and comfort.
- Jointless nylon bands suppress vibration of belt layers to enhance uniformity of tire and noise-reduction efficiency at high speed.
- High strength radial belt layers increase impact-absorption capacity, high speed stability, and prolonged endurance.
Warning
SERIOUS INJURY OR DEATH MAY RESULT FROM：(A) Tire Failure due to underinflation and/or overloading. Consult the owner’s manual or vehicle tire placard. (B) Explosion of tire/rim assembly due to improper mounting. Only trained persons should mount tires.
TIRE MOUNTING SAFETY PRECAUTIONS：1. Follow RMA installation safety procedures for mounting and inflating tires. 2. Always match the rim diameter with tire diameter. 3. Never mount tire on a cracked, bent, or corroded rim. 4. Never put a flammable substance into a tire/rim assembly. 5. Always clean and lubricate rim and tire beads. 6. Never inflate a tire/rim assembly that is not restrained. 7. Always use a clip-on chuck and extension gauge on air hose when inflating and/or seating beads. 8. Never stand next to, lean or reach over the tire/rim assembly when inflating. 9. Never inflate over 40psi (275kPA) to seat beads. 10. Tire pressure should be adjusted to the recommended operating pressure after beads are seated.
Global Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | ||||||||
| 16 | 225/60R16 | 98T | 676 | 26.6 | 228 | 9.0 | 6.5 | 6.0 ~ 8.0 | 176 | 6.9 | 9.0 | 11 | 44 | 750 | 1653 | ||
| 17 | 215/55R17 | 98T XL | 668 | 26.3 | 226 | 8.9 | 7.0 | 6.0 ~ 7.5 | 181 | 7.1 | 9.0 | 11 | 50 | 750 | 1653 | ||
| 225/45R17 | 94T XL | 634 | 25.0 | 225 | 8.9 | 7.5 | 7.0 ~ 8.5 | 194 | 7.6 | 9.0 | 11 | 50 | 670 | 1477 | |||
| 225/50R17 | 94T | 658 | 25.9 | 233 | 9.2 | 7.0 | 6.0 ~ 8.0 | 182 | 7.2 | 9.0 | 11 | 44 | 670 | 1477 | |||
| 225/55R17 | 101T XL | 680 | 26.8 | 233 | 9.2 | 7.0 | 6.0 ~ 8.0 | 186 | 7.3 | 9.0 | 11 | 50 | 825 | 1819 | |||
| 235/45R17 | 97T XL | 644 | 25.4 | 236 | 9.3 | 8.0 | 7.5 ~ 9.0 | 203 | 8.0 | 9.0 | 11 | 50 | 730 | 1609 | |||
| 235/55R17 | 99T | 690 | 27.2 | 245 | 9.6 | 7.5 | 6.5 ~ 8.5 | 196 | 7.7 | 9.0 | 11 | 44 | 775 | 1709 | |||
| 18 | 225/45R18 | 91T | 659 | 25.9 | 225 | 8.9 | 7.5 | 7.0 ~ 8.5 | 194 | 7.6 | 9.0 | 11 | 44 | 615 | 1356 | ||
| 235/45R18 | 94T | 669 | 26.3 | 236 | 9.3 | 8.0 | 7.5 ~ 9.0 | 203 | 8.0 | 9.0 | 11 | 44 | 670 | 1477 | |||
| 245/40R18 | 97T XL | 653 | 25.7 | 248 | 9.8 | 8.5 | 8.0 ~ 9.5 | 206 | 8.1 | 9.0 | 11 | 50 | 730 | 1609 | |||
Europe Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | Tyres | RR | Wet Grip |
dBS | E_sound | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | |||||||||||||
| For details please contact our sales representatives. | ||||||||||||||||||||||
