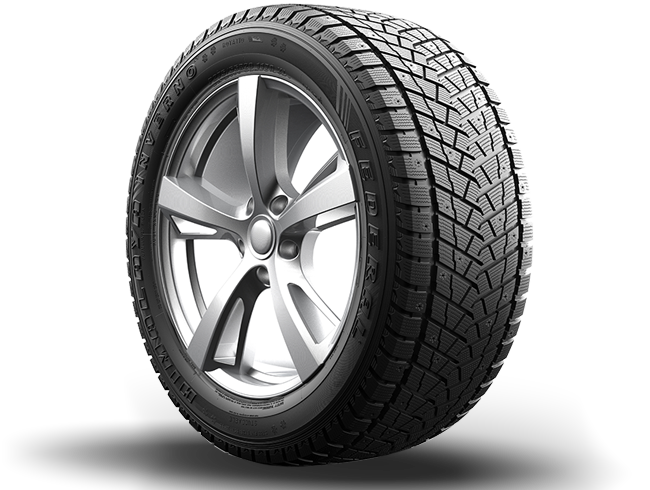

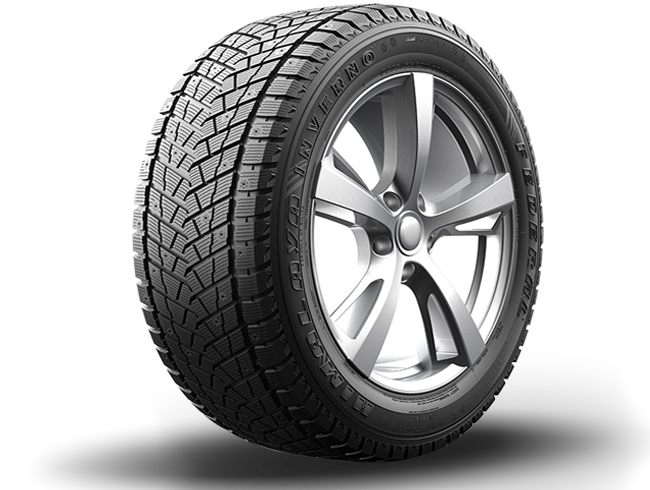

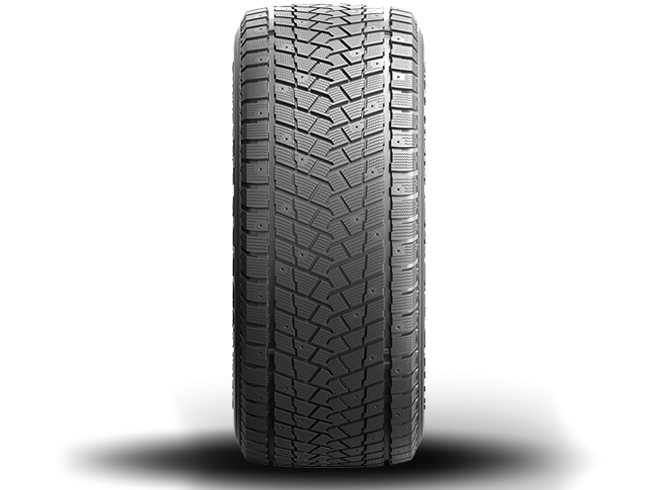

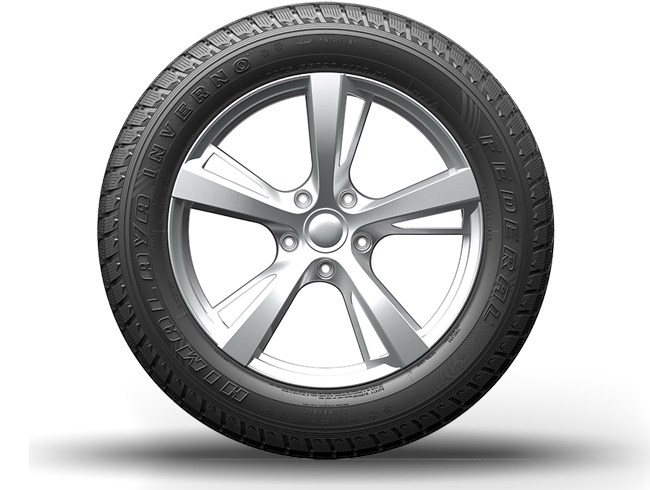

HIMALAYA INVERNO
The Himalaya Inverno is your safe and reliable snow tire for LTRs and SUVs.Its studdable version, the Himalaya Inverno K1, can cope with severe winter condition and hard-packed snowy roads.
FEATURES
- Optimized compounds, studdable capability, and pattern design provide precise steering, traction, and reduced noise.
- V-shaped grooves enhance water dispersion efficiency for better traction on snow, ice, and slush.
- Staggered sipes increase snow traction.
Warning
SERIOUS INJURY OR DEATH MAY RESULT FROM：(A) Tire Failure due to underinflation and/or overloading. Consult the owner’s manual or vehicle tire placard. (B) Explosion of tire/rim assembly due to improper mounting. Only trained persons should mount tires.
TIRE MOUNTING SAFETY PRECAUTIONS：1. Follow RMA installation safety procedures for mounting and inflating tires. 2. Always match the rim diameter with tire diameter. 3. Never mount tire on a cracked, bent, or corroded rim. 4. Never put a flammable substance into a tire/rim assembly. 5. Always clean and lubricate rim and tire beads. 6. Never inflate a tire/rim assembly that is not restrained. 7. Always use a clip-on chuck and extension gauge on air hose when inflating and/or seating beads. 8. Never stand next to, lean or reach over the tire/rim assembly when inflating. 9. Never inflate over 40psi (275kPA) to seat beads. 10. Tire pressure should be adjusted to the recommended operating pressure after beads are seated.
Global Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | ||||||||
| 16 | 235/70R16 | 106T | 739 | 29.1 | 234 | 9.2 | 7.0 | 6.0 ~ 8.0 | 190 | 7.5 | 9 | 11.3 | 44 | 950 | 2094 | ||
| 17 | 215/65R17 | 103H XL | 713 | 28.1 | 224 | 8.8 | 6.5 | 6.0 ~ 7.5 | 175 | 6.9 | 9 | 11.3 | 50 | 875 | 1929 | ||
| 225/65R17 | 102T | 724 | 28.5 | 225 | 8.9 | 6.5 | 6.0 ~ 8.0 | 180 | 7.1 | 9 | 11.3 | 44 | 850 | 1874 | |||
| 235/65R17 | 108H XL | 739 | 29.1 | 245 | 9.6 | 7.0 | 6.5 ~ 8.5 | 190 | 7.5 | 9 | 11.3 | 50 | 1000 | 2205 | |||
| 245/70R17 | 110Q | 777 | 30.6 | 243 | 9.6 | 7.0 | 6.5 ~ 8.0 | 201 | 7.9 | 9 | 11.3 | 44 | 1060 | 2337 | |||
| 265/65R17 | 116T XL | 777 | 30.6 | 272 | 10.7 | 8.0 | 7.5 ~ 9.5 | 215 | 8.5 | 9 | 11.3 | 50 | 1250 | 2756 | |||
| 265/70R17 | 115T | 806 | 31.7 | 269 | 10.6 | 8.0 | 7.0 ~ 9.0 | 220 | 8.7 | 9 | 11.3 | 44 | 1215 | 2679 | |||
| 18 | 235/55R18 | 104V XL | 720 | 28.3 | 244 | 9.6 | 7.5 | 6.5 ~ 8.5 | 203 | 8.0 | 9 | 11.3 | 50 | 900 | 1984 | ||
| 235/60R18 | 107H XL | 741 | 29.2 | 241 | 9.5 | 7.0 | 6.5 ~ 8.5 | 197 | 7.8 | 9 | 11.3 | 50 | 975 | 2150 | |||
| 255/55R18 | 109H XL | 739 | 29.1 | 266 | 10.5 | 8.0 | 7.0 ~ 9.0 | 220 | 8.7 | 9 | 11.3 | 50 | 1030 | 2271 | |||
| 19 | 245/55R19 | 103T | 756 | 29.8 | 250 | 9.8 | 7.5 | 7.0 ~ 8.5 | 231 | 9.1 | 9 | 11.3 | 44 | 875 | 1929 | ||
| 255/50R19 | 107H XL | 741 | 29.2 | 263 | 10.3 | 8.0 | 7.0 ~ 9.0 | 217 | 8.5 | 9 | 11.3 | 50 | 975 | 2150 | |||
| 255/55R19 | 111H XL | 765 | 30.1 | 266 | 10.5 | 8.0 | 7.0 ~ 9.0 | 220 | 8.7 | 9 | 11.3 | 50 | 1090 | 2403 | |||
| 265/50R19 | 110H XL | 751 | 29.6 | 275 | 10.8 | 8.5 | 7.5 ~ 9.5 | 227 | 8.9 | 9 | 11.3 | 50 | 1060 | 2337 | |||
| 285/45R19 | 111H XL | 740 | 29.1 | 285 | 11.2 | 9.5 | 9.0 ~ 10.5 | 237 | 9.3 | 9 | 11.3 | 50 | 1090 | 2403 | |||
| 20 | 245/50R20 | 102H | 759 | 29.9 | 244 | 9.6 | 7.5 | 7.0 ~ 8.5 | 229 | 9.0 | 9 | 11.3 | 44 | 850 | 1874 | ||
| 255/45R20 | 105H XL | 740 | 29.1 | 257 | 10.1 | 8.5 | 8.0 ~ 9.5 | 212 | 8.3 | 9 | 11.3 | 50 | 925 | 2039 | |||
| 265/50R20 | 107T | 775 | 30.5 | 272 | 10.7 | 8.5 | 7.5 ~ 9.5 | 227 | 8.9 | 9 | 11.3 | 44 | 975 | 2150 | |||
| 275/40R20 | 106H XL | 731 | 28.8 | 276 | 10.9 | 9.5 | 9.0 ~ 11.0 | 236 | 9.3 | 9 | 11.3 | 50 | 950 | 2094 | |||
| 275/45R20 | 110H XL | 759 | 29.9 | 272 | 10.7 | 9.0 | 8.5 ~ 10.5 | 227 | 8.9 | 9 | 11.3 | 50 | 1060 | 2337 | |||
| 275/50R20 | 113H XL | 786 | 30.9 | 278 | 11.0 | 8.5 | 7.5 ~ 9.5 | 233 | 9.2 | 9 | 11.3 | 50 | 1150 | 2535 | |||
| 275/55R20 | 117Q XL | 810 | 31.9 | 287 | 11.3 | 8.5 | 7.5 ~ 9.5 | 257 | 10.1 | 9 | 11.3 | 44 | 1285 | 2833 | |||
| 285/40R20 | 108V XL | 736 | 29.0 | 290 | 11.4 | 10.0 | 9.5 ~ 11.0 | 247 | 9.7 | 9 | 11.3 | 50 | 1000 | 2205 | |||
| 285/45R20 | 112V XL | 770 | 30.3 | 286 | 11.2 | 9.0 | 9.0 ~ 10.5 | 237 | 9.3 | 9 | 11.3 | 50 | 1120 | 2469 | |||
| 285/50R20 | 116T XL | 797 | 31.4 | 293 | 11.5 | 9.0 | 8.0 ~ 10.0 | 244 | 9.6 | 9 | 11.3 | 50 | 1250 | 2756 | |||
| 21 | 265/40R21 | 105H XL | 749 | 29.5 | 263 | 10.4 | 9.5 | 9.0 ~ 10.5 | 230 | 9.1 | 9 | 11.3 | 50 | 925 | 2039 | ||
| 275/40R21 | 107H XL | 758 | 29.8 | 280 | 11.0 | 9.5 | 9.0 ~ 11.0 | 236 | 9.3 | 9 | 11.3 | 50 | 975 | 2150 | |||
| 275/45R21 | 110H XL | 784 | 30.9 | 269 | 10.6 | 9.0 | 8.5 ~ 10.5 | 227 | 8.9 | 9 | 11.3 | 50 | 1060 | 2337 | |||
| 285/40R21 | 109V XL | 764 | 30.1 | 289 | 11.4 | 10.0 | 9.5 ~ 11.0 | 247 | 9.7 | 9 | 11.3 | 50 | 1030 | 2271 | |||
| 285/45R21 | 110H | 818 | 32.2 | 280 | 11.0 | 9.5 | 9.0 ~ 10.5 | 237 | 9.3 | 9 | 11.3 | 44 | 1060 | 2337 | |||
Europe Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | Tyres | RR | Wet Grip |
dBS | E_sound | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | |||||||||||||
| For details please contact our sales representatives. | ||||||||||||||||||||||
