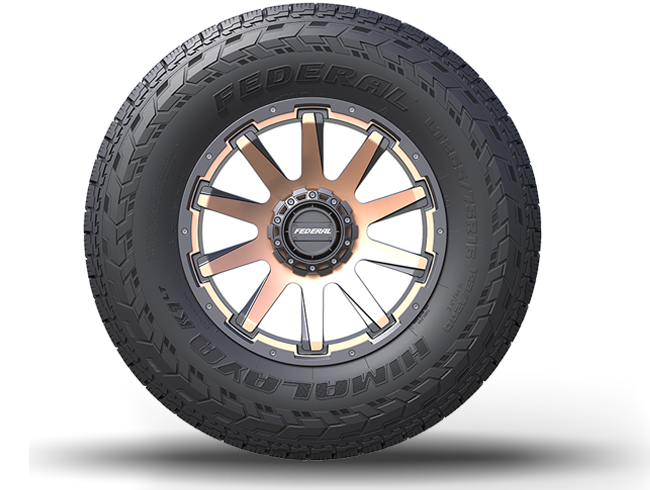

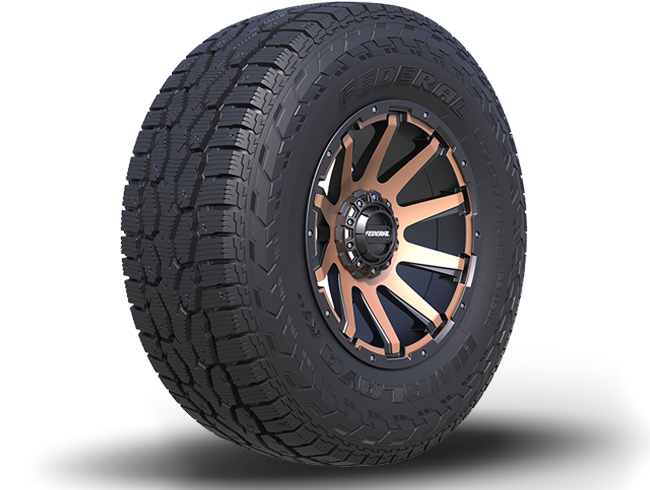

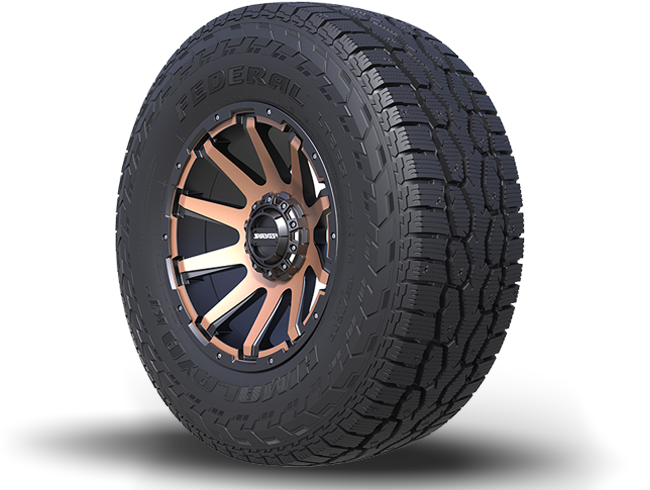

HIMALAYA K1 LT
Designed for light pickup trucks, the sturdy Himalaya K1 LT delivers robust traction and durability you can count on in severe winter weather conditions.
FEATURES

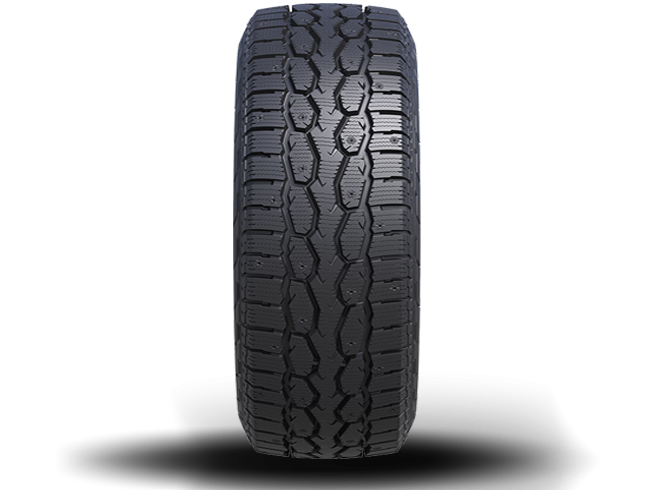

- 3D-blade-design sipes maximize contact areas and biting edges with balanced tire toughness for optimal steering and braking control on snow and ice.
- Two zigzag wide grooves and slanted lateral grooves provide better straight line momentum and water/snow dispersion efficiency for increased acceleration and cornering stability.
- Angular tread blocks provide unified tire rigidity for better traction on ice and snow.
- Acoustical barrier reduces noise for comfortable rides.
Warning
SERIOUS INJURY OR DEATH MAY RESULT FROM：(A) Tire Failure due to underinflation and/or overloading. Consult the owner’s manual or vehicle tire placard. (B) Explosion of tire/rim assembly due to improper mounting. Only trained persons should mount tires.
TIRE MOUNTING SAFETY PRECAUTIONS：1. Follow RMA installation safety procedures for mounting and inflating tires. 2. Always match the rim diameter with tire diameter. 3. Never mount tire on a cracked, bent, or corroded rim. 4. Never put a flammable substance into a tire/rim assembly. 5. Always clean and lubricate rim and tire beads. 6. Never inflate a tire/rim assembly that is not restrained. 7. Always use a clip-on chuck and extension gauge on air hose when inflating and/or seating beads. 8. Never stand next to, lean or reach over the tire/rim assembly when inflating. 9. Never inflate over 40psi (275kPA) to seat beads. 10. Tire pressure should be adjusted to the recommended operating pressure after beads are seated.
Global Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | ||||||||
| 16 | LT225/75R16 | 115/112Q | 10 | 746 | 29.4 | 222 | 8.7 | 6.0 | 6.0 ~ 7.5 | 160 | 6.3 | 11.5 | 15 | 80 | 1215/1120 | 2680/2470 | |
| LT235/85R16 | 120/116Q | 10 | 806 | 31.7 | 235 | 9.3 | 6.5 | 6.0 ~ 7.5 | 180 | 7.1 | 12.6 | 16 | 80 | 1380/1260 | 3042/2778 | ||
| LT245/75R16 | 120/116Q | 10 | 770 | 30.3 | 255 | 10.0 | 7.0 | 6.5 ~ 8.0 | 190 | 7.5 | 12.6 | 16 | 80 | 1380/1260 | 3042/2778 | ||
| LT265/75R16 | 123/120Q | 10 | 800 | 31.5 | 264 | 10.4 | 7.5 | 7.0 ~ 9.0 | 206 | 8.1 | 12.6 | 16 | 80 | 1550/1400 | 3415/3085 | ||
| 17 | LT245/70R17 | 119/116Q | 10 | 776 | 30.6 | 248 | 9.8 | 7.0 | 6.5 ~ 8.0 | 190 | 7.5 | 12.6 | 16 | 80 | 1360/1250 | 3000/2755 | |
| LT245/75R17 | 121/118Q | 10 | 794 | 31.3 | 246 | 9.7 | 7.0 | 6.5 ~ 8.0 | 190 | 7.5 | 12.6 | 16 | 80 | 1450/1320 | 3195/2910 | ||
| LT265/70R17 | 121/118Q | 10 | 804 | 31.7 | 272 | 10.7 | 8.0 | 7.0 ~ 9.0 | 210 | 8.3 | 12.6 | 16 | 80 | 1450/1320 | 3195/2910 | ||
| 18 | LT275/65R18 | 123/120Q | 10 | 815 | 32.1 | 279 | 11.0 | 8.0 | 8.0 ~ 9.5 | 226 | 8.9 | 13.5 | 17 | 80 | 1550/1400 | 3415/3085 | |
| LT275/70R18 | 125/122Q | 10 | 843 | 33.2 | 279 | 11.0 | 8.0 | 7.0 ~ 9.0 | 214 | 8.4 | 13.5 | 17 | 80 | 1650/1500 | 3640/3305 | ||
Europe Dimension Data
| SER | Size | LI/SS | PR | Overall Diameter |
Section Width |
Standard Rim in |
Approved Rim Width in |
Tread Width |
Tread Depth |
Max. Air Pressure psi |
Max. Load |
UTQG | Tyres | RR | Wet Grip |
dBS | E_sound | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in32" | KG | lbs | |||||||||||||
| For details please contact our sales representatives. | ||||||||||||||||||||||
